The recommended operating voltage range for the 74HCT08T14-13 is 4.5V to 5.5V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 3.0V to 5.5V, but the performance may vary.
To ensure the 74HCT08T14-13 is properly powered, make sure to decouple the power supply lines with capacitors (e.g., 0.1uF and 10uF) to reduce noise and voltage spikes. Additionally, use a stable and regulated power supply to maintain the recommended operating voltage range.
The 74HCT08T14-13 can sink or source a maximum current of 25mA per output pin, as specified in the datasheet. However, it's recommended to limit the current to 10mA per pin to ensure reliable operation and prevent overheating.
To handle thermal management, ensure good airflow around the device, and consider using a heat sink or thermal pad if the device is expected to operate in high-temperature environments or with high-power consumption. The maximum junction temperature (Tj) is 150°C.
The propagation delay of the 74HCT08T14-13 is typically around 10ns to 15ns, depending on the operating voltage and temperature. However, this value can vary depending on the specific application and PCB layout.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
74HCT08T14-13 Overview

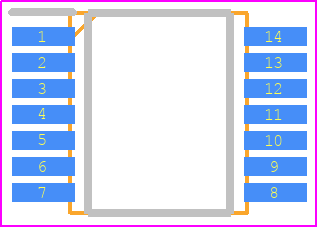

Use the download button to access the 74HCT08T14-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74HCT,
or try a keyword search, such as Gates
