The recommended operating voltage range for the 74HCT151PW,112 is 4.5V to 5.5V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 3.0V to 7.0V for short periods, but this may affect its performance and reliability.
To ensure proper powering and decoupling, it's recommended to use a 0.1uF ceramic capacitor between the VCC pin and GND, and a 10uF electrolytic capacitor between VCC and GND, placed as close to the device as possible. Additionally, use a low-ESR capacitor and keep the power supply lines as short as possible to minimize noise and voltage drops.
The maximum frequency of operation for the 74HCT151PW,112 is 30MHz, as specified in the datasheet. However, this frequency may vary depending on the specific application, operating voltage, and temperature. It's essential to consult the datasheet and perform thorough testing to ensure the device meets the required frequency specifications.
During power-up and power-down sequences, it's essential to ensure that the input pins are not driven until the power supply has reached a stable voltage level. Additionally, the output pins should not be loaded until the device has completed its power-up sequence. It's recommended to use a power-on reset circuit or a voltage supervisor to ensure proper power-up and power-down sequences.
The thermal resistance of the 74HCT151PW,112 package is typically around 60°C/W for the junction-to-ambient thermal resistance (RθJA) and 20°C/W for the junction-to-case thermal resistance (RθJC). However, this value may vary depending on the specific application, board design, and environmental conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
74HCT151PW,112 Overview

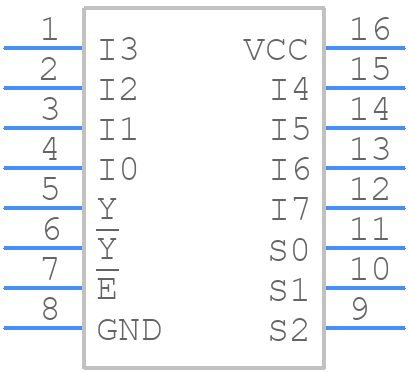

Use the download button to access the 74HCT151PW,112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74HCT,
or try a keyword search, such as Multiplexer/Demultiplexers
About Nexperia
Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
