74HCT154D,652 - Nexperia

Description: 74HC(T)154 - 4-to-16 line decoder/demultiplexer@en-us

Download 74HCT154D,652 Model
Schematic
symbols

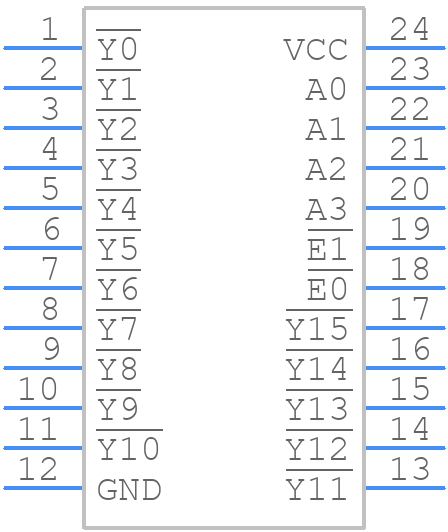

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74HCT154D,652 - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SOT137-1
click to zoom
3D Models
74HCT154D,652 - Nexperia  - 3D model - Small Outline Packages - SOT137-1
click to zoom

74HCT154D,652 Details

  • Manufacturer Part Number:

    74HCT154D,652

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOP

  • Package Description:

    7.50 MM, PLASTIC, MS-013, SOT137-1, SOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    SOT137-1

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    1993-11-01

  • Manufacturer:

    Nexperia

  • Risk Rank:

    6.79

  • YTEOL:

    0

  • Additional Feature:

    2 ENABLE INPUTS

  • Family:

    HCT

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    15.4 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    OTHER DECODER/DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    53 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD SILVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

Trust Checks

This model has been built in collaboration with the manufacturer.
