74HCT165BZX - Nexperia

Description: 8-bit parallel-in/serial out shift register 2.0 V to 6.0 V,100 mA,40 °C to +125 °C

Download 74HCT165BZX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

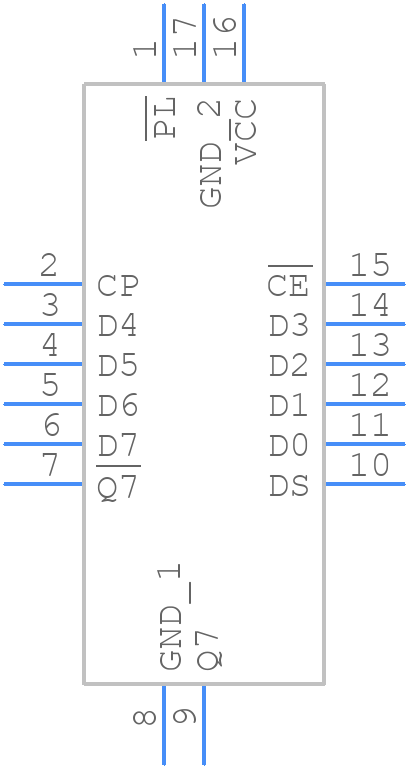

74HCT165BZX - Nexperia - PCB symbol
click to zoom
PCB Footprints
74HCT165BZX - Nexperia PCB footprint - Other - Other - SOT8016-1_2025-4
click to zoom
3D Models
74HCT165BZX - Nexperia - 3D model - Other - SOT8016-1_2025-4
click to zoom

74HCT165BZX Details

  • Manufacturer Part Number:

    74HCT165BZX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Nexperia

  • Logic IC Type:

    PARALLEL IN SERIAL OUT

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    40

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74HCT165BZX Overview

Use the download button to access the 74HCT165BZX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74HCT, or try a keyword search, such as Shift Registers
