74HCT253D,653 - Nexperia

Description: 74HC(T)253 - Dual 4-input multiplexer; 3-state@en-us

Download 74HCT253D,653 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

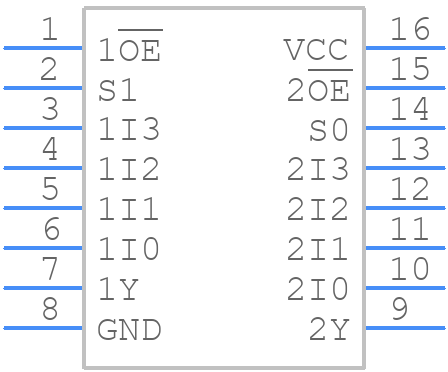

Symbol
74HCT253D,653 - Nexperia - PCB symbol
click to zoom
PCB Footprints
74HCT253D,653 - Nexperia PCB footprint - Other - Other - 74HCT253D,653-3
click to zoom
3D Models
74HCT253D,653 - Nexperia - 3D model - Other - 74HCT253D,653-3
click to zoom

74HCT253D,653 Details

  • Manufacturer Part Number:

    74HCT253D,653

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOP

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT109-1

  • Country Of Origin:

    Mainland China, Thailand

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    1993-01-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    10

  • Family:

    HCT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    MULTIPLEXER

  • Max I(ol):

    0.006 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Inputs:

    4

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    70 mA

  • Prop. Delay@Nom-Sup:

    60 ns

  • Propagation Delay (tpd):

    60 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

74HCT253D,653 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74HCT253D,653 is 4.5V to 5.5V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 3.0V to 7.0V for short periods, but this may affect its performance and reliability.
  • To ensure signal integrity when using the 74HCT253D,653 in high-speed applications, it's crucial to follow proper PCB design practices, such as using controlled impedance traces, minimizing signal routing distances, and using termination resistors or series resistors to reduce signal reflections.
  • While the 74HCT253D,653 is specified for 5V operation, it can be used in a 3.3V system, but with some limitations. The device's output voltage will be lower, and the output current drive capability will be reduced. Additionally, the device's propagation delay and transition times may be affected. It's essential to review the datasheet and perform thorough testing to ensure the device meets the system's requirements.
  • The maximum clock frequency supported by the 74HCT253D,653 is not explicitly stated in the datasheet. However, based on the device's propagation delay and transition times, it's generally recommended to limit the clock frequency to 50 MHz or less to ensure reliable operation.
  • When using the 74HCT253D,653 in a system with multiple power domains, it's essential to ensure that the power sequencing is properly handled to prevent damage to the device. The recommended approach is to power up the VCC pin before applying any input signals, and to power down the VCC pin after removing all input signals.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74HCT253D,653 Overview

Use the download button to access the 74HCT253D,653 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74HCT, or try a keyword search, such as Multiplexer/Demultiplexers

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
