74HCT259PW,112 - Nexperia

Description: 74HC(T)259 - 8-bit addressable latch@en-us

Download 74HCT259PW,112 Model

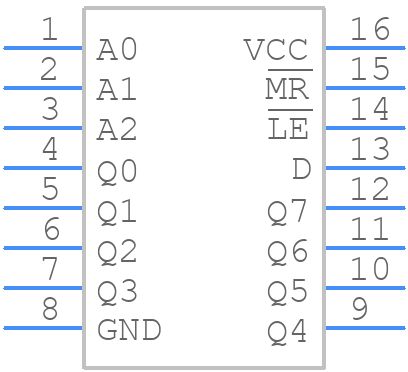

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74HCT259PW,112 - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SOT403-1
click to zoom
3D Models
74HCT259PW,112 - Nexperia  - 3D model - Small Outline Packages - SOT403-1
click to zoom

74HCT259PW,112 Details

  • Manufacturer Part Number:

    74HCT259PW,112

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT403-1

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    1995-11-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Additional Feature:

    1:8 DMUX FOLLOWED BY LATCH

  • Family:

    HCT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Load Capacitance (CL):

    15 pF

  • Logic IC Type:

    D LATCH

  • Max I(ol):

    0.004 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.16 mA

  • Prop. Delay@Nom-Sup:

    57 ns

  • Propagation Delay (tpd):

    57 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    LOW LEVEL

  • Width:

    4.4 mm

74HCT259PW,112 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74HCT259PW,112 is 4.5V to 5.5V, as specified in the datasheet. However, it's recommended to operate the device at a stable 5V supply voltage for optimal performance.
  • It's recommended to power up the VCC pin before applying any input signals, and to power down the VCC pin after removing all input signals. This ensures that the device is properly initialized and avoids any potential latch-up or damage.
  • The maximum frequency of operation for the 74HCT259PW,112 is typically limited by the propagation delay and clock-to-output delay. According to the datasheet, the maximum clock frequency is around 30MHz, but this can vary depending on the specific application and operating conditions.
  • It's recommended to use a 0.1uF to 1uF decoupling capacitor between the VCC pin and GND pin, as close to the device as possible. This helps to filter out noise and voltage spikes, ensuring stable operation and reducing the risk of latch-up or damage.
  • The 74HCT259PW,112 can sink or source up to 6mA per output pin, according to the datasheet. However, it's recommended to limit the current to 4mA or less to ensure reliable operation and to prevent overheating.
