- Part Number 74HCT374D
- Manufacturer Nexperia
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P1032X265-20N
- Released Date Jan 12, 2017
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
74HCT374D Details
-
Manufacturer Part Number:
74HCT374D
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
SOP-20
-
Country Of Origin:
Mainland China, Thailand
-
HTS Code:
8542.39.00.60
-
Date Of Intro:
1991-01-01
-
Manufacturer:
Nexperia
-
YTEOL:
10
-
Control Type:
ENABLE LOW
-
Count Direction:
UNIDIRECTIONAL
74HCT374D Frequently Asked Questions (FAQs)
-
The maximum frequency of operation for the 74HCT374D is typically around 100 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and perform simulations to determine the maximum frequency for a specific design.
-
To ensure proper power and decoupling, it's recommended to follow Nexperia's guidelines for power supply decoupling and to use a 0.1 μF ceramic capacitor between the VCC and GND pins, as close to the device as possible. Additionally, a 10 μF electrolytic capacitor can be used in parallel to filter out low-frequency noise.
-
The recommended termination scheme for the 74HCT374D is to use a series resistor (Rs) of 22-33 ohms and a parallel capacitor (Cp) of 10-22 pF at the output of each buffer. This helps to reduce ringing and improve signal integrity.
-
Yes, the 74HCT374D is compatible with 5V systems, but it's recommended to ensure that the input signals are within the specified voltage range (VCC - 0.5V to VCC + 0.5V) to prevent damage to the device.
-
During power-up and power-down, it's recommended to keep the OE pin in a high-impedance state (i.e., not driven) to prevent unwanted output transitions. Once the device is powered up, the OE pin can be driven low to enable the outputs.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
74HCT374D Overview

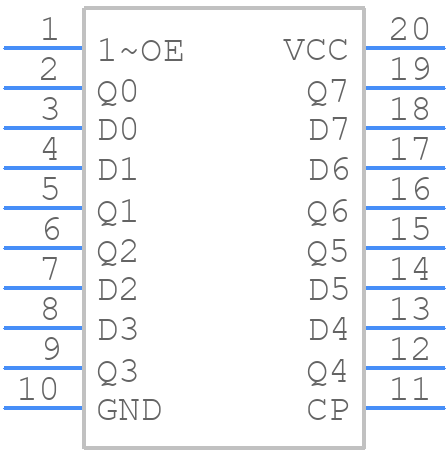

Use the download button to access the 74HCT374D schematic symbol, PCB footprint, and 3D model.
