74HCT4052D - Toshiba

Description: Dual SP4T(1:4)/Analog Multiplexer, SOIC16

Download 74HCT4052D Model

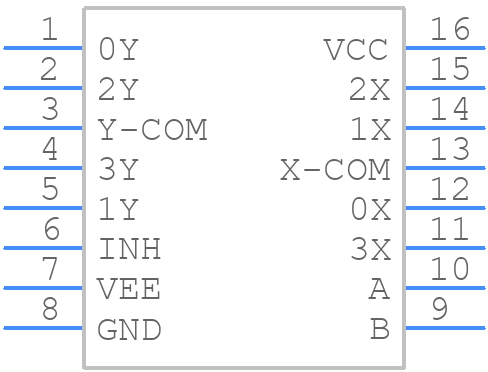

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74HCT4052D - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOIC16_2023
click to zoom
3D Models
74HCT4052D - Toshiba  - 3D model - Small Outline Packages - SOIC16_2023
click to zoom

74HCT4052D Details

  • Manufacturer Part Number:

    74HCT4052D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOIC-16

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2016-05-24

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    3

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.2 mm

  • Neg Supply Voltage-Min (Vsup):

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -4.5 V

  • Number of Channels:

    4

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    10 Ω

  • On-state Resistance-Max (Ron):

    340 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.025 A

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    42 ns

  • Switch-on Time-Max:

    62 ns

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

74HCT4052D Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74HCT4052D is 4.5V to 5.5V.
  • To ensure the 74HCT4052D is properly powered, connect the VCC pin to a stable 5V power supply and the GND pin to a reliable ground connection.
  • The maximum frequency of operation for the 74HCT4052D is 30 MHz.
  • The enable inputs (E1 and E2) are active-low, meaning they must be pulled low to enable the corresponding channel. Connect them to a logic low (GND) to enable the channel, or to a logic high (VCC) to disable it.
  • The propagation delay for the 74HCT4052D is typically around 10 ns, but can vary depending on the operating conditions and load capacitance.
