74HCT4053BZX - Nexperia

Description: plastic, leadless dual in-line compatible thermal enhanced extreme thin quad flat package; no leads; 16 terminals; 0.4 mm pitch; body 2 mm × 2.4 mm × 0.48 mm

Download 74HCT4053BZX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

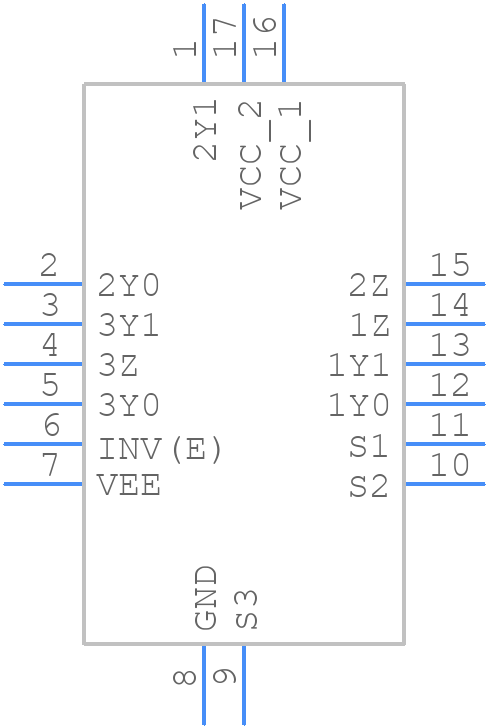

74HCT4053BZX - Nexperia - PCB symbol
click to zoom
PCB Footprints
74HCT4053BZX - Nexperia PCB footprint - Other - Other - 74HCT4053BZX-5
click to zoom

74HCT4053BZX Details

  • Manufacturer Part Number:

    74HCT4053BZX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Nexperia

  • Analog IC - Other Type:

    SPDT

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    40

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74HCT4053BZX Overview

Use the download button to access the 74HCT4053BZX schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 74HCT, or try a keyword search, such as Multiplexers or Switches

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
