74HCT4075D,652 - Nexperia

Description: 74HC4075; 74HCT4075 - Triple 3-input OR gate@en-us

Download 74HCT4075D,652 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

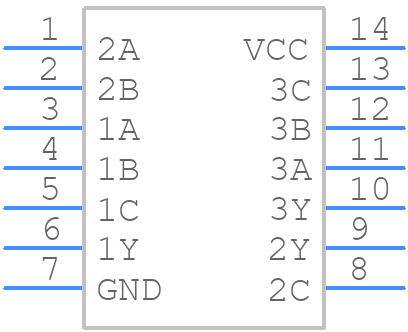

74HCT4075D,652 - Nexperia - PCB symbol
click to zoom
PCB Footprints
74HCT4075D,652 - Nexperia PCB footprint - Other - Other - 74HCT4075D,652-3
click to zoom
3D Models
74HCT4075D,652 - Nexperia - 3D model - Other - 74HCT4075D,652-3
click to zoom

74HCT4075D,652 Details

  • Manufacturer Part Number:

    74HCT4075D,652

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SO-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    SOT108-1

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    1993-11-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Family:

    HCT

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    OR GATE

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    3

  • Number of Inputs:

    3

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    36 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

74HCT4075D,652 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74HCT4075D,652 is 4.5V to 5.5V, as specified in the datasheet. However, it's generally recommended to operate the device at a stable voltage of 5V ± 10% for optimal performance.
  • Unused inputs of the 74HCT4075D,652 should be connected to VCC or GND through a pull-up or pull-down resistor, respectively. This is to prevent floating inputs, which can cause unwanted switching and increase power consumption.
  • The maximum frequency of operation for the 74HCT4075D,652 is not explicitly stated in the datasheet. However, based on the propagation delay and rise/fall times, it's generally recommended to operate the device at frequencies up to 30-40 MHz for reliable operation.
  • The 74HCT4075D,652 is a 5V device, and its input voltage tolerance is not sufficient for 3.3V systems. Using the device in a 3.3V system may result in unreliable operation or damage to the device. If you need a 3.3V-compatible device, consider using a 74LVC or 74AHC series device instead.
  • To ensure proper decoupling, place a 100nF ceramic capacitor between VCC and GND as close to the device as possible. This helps to filter out noise and reduce power supply ripple, ensuring reliable operation of the device.
