74HCT541D(BJ) - Toshiba

Description: Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS 20-Pin SOIC T/R

Download 74HCT541D(BJ) Model

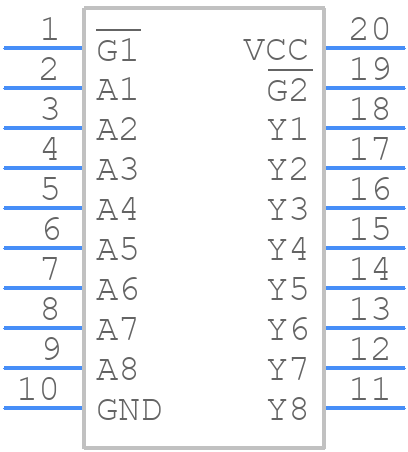

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74HCT541D(BJ) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOIC20_2022
click to zoom
3D Models
74HCT541D(BJ) - Toshiba  - 3D model - Small Outline Packages - SOIC20_2022
click to zoom

74HCT541D(BJ) Details

  • Manufacturer Part Number:

    74HCT541D(BJ)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    SOIC-20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0.4

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    HCT

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    12.8 mm

  • Load Capacitance (CL):

    150 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.006 A

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Power Supply Current-Max (ICC):

    75 mA

  • Prop. Delay@Nom-Sup:

    33 ns

  • Propagation Delay (tpd):

    41 ns

  • Seated Height-Max:

    2.5 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

74HCT541D(BJ) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74HCT541D(BJ) is 4.5V to 5.5V.
  • No, the 74HCT541D(BJ) is not compatible with 3.3V logic. It is designed to operate at 5V and may not function correctly at lower voltages.
  • The maximum clock frequency that the 74HCT541D(BJ) can handle is 30MHz.
  • No, the 74HCT541D(BJ) does not have built-in pull-up resistors. External pull-up resistors may be required depending on the application.
  • Yes, the 74HCT541D(BJ) is available in a lead-free package, which is RoHS compliant.
