The recommended operating voltage range for the 74HCT85D,652 is 4.5V to 5.5V, as specified in the datasheet. However, it's recommended to operate the device at a stable voltage of 5V ± 10% for optimal performance.
To ensure reliable operation of the 74HCT85D,652 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range of -40°C to +125°C.
The maximum clock frequency that the 74HCT85D,652 can handle is 30 MHz, as specified in the datasheet. However, the actual clock frequency may be limited by the system's noise margin, signal integrity, and other factors. It's recommended to perform thorough signal integrity analysis and simulation to ensure reliable operation at higher clock frequencies.
The propagation delay of the 74HCT85D,652 is typically around 10-15 ns, depending on the operating conditions and load capacitance. To handle the propagation delay, it's essential to consider it in your design's timing budget, ensure that the clock signal is properly synchronized, and use proper signal buffering and termination techniques to minimize signal reflections and distortion.
The 74HCT85D,652 is a 5V device, but it can be used with 3.3V logic levels with some limitations. The device's input thresholds are compatible with 3.3V logic levels, but the output voltage levels may not be sufficient to drive 3.3V logic devices. It's recommended to use level translators or voltage regulators to ensure proper voltage levels and signal integrity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
74HCT85D,652 Overview

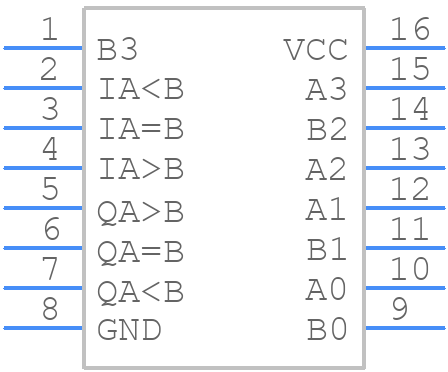

Use the download button to access the 74HCT85D,652 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74HCT,
or try a keyword search, such as Arithmetic Circuits
About Nexperia
Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
