74LCX04BQX - onsemi

Description: Latch-up performance exceeds JEDEC 78 conditions; Power down high impedance inputs and outputs; 2.3V-3.6V VCC specifications provided; 5.2 ns tPD max (VCC = 3.3V), 10 µA ICC max; ESD performance: Human body model > 2000V Machine model > 200V; Leadless Pb-Free DQFN package; 5V tolerant inputs; Implements patented noise/EMI reduction circuitry; ±24 mA output drive (VCC = 3.0V)

Download 74LCX04BQX Model

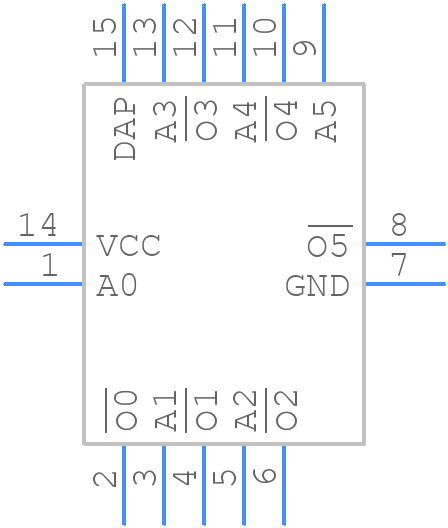

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74LCX04BQX - onsemi PCB footprint - Other - Other - QFN14 3.0x2.5, 0.5P CASE 510CB ISSUE O_2
click to zoom
3D Models
74LCX04BQX - onsemi  - 3D model - Other - QFN14 3.0x2.5, 0.5P CASE 510CB ISSUE O_2
click to zoom

74LCX04BQX Details

  • Manufacturer Part Number:

    74LCX04BQX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN-14

  • Package Description:

    QFN-14

  • Manufacturer Package Code:

    510CB

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.3

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    R-XQCC-N14

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    INVERTER

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    6

  • Number of Inputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC14,.1X.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    5.2 ns

  • Propagation Delay (tpd):

    6.2 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

74LCX04BQX Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the 74LCX04BQX is typically 100 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure signal integrity, use proper PCB design techniques, such as using short signal traces, minimizing impedance mismatches, and using termination resistors as needed.
  • Yes, the 74LCX04BQX is compatible with 3.3V systems, but ensure that the input voltage does not exceed the maximum rating of 4.5V.
  • The power consumption of the 74LCX04BQX is typically around 10-20 μA per gate, depending on the operating frequency and input signals.
  • Use proper ESD protection measures, such as using ESD-resistant devices, handling devices by the body, and using anti-static packaging and workstations.
