The recommended operating voltage range for the 74LCX157FT is 2.3V to 3.6V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 1.8V to 4.5V, but the performance may vary.
The propagation delay of the 74LCX157FT is typically around 3.5ns, but it can vary depending on the operating conditions. To handle the propagation delay, ensure that your design takes into account the maximum propagation delay specified in the datasheet, and consider using clock stretching or other synchronization techniques to ensure reliable data transfer.
While the 74LCX157FT can tolerate a voltage range of 1.8V to 4.5V, it's not recommended to use it in a 5V system. Operating the device at 5V may cause excessive power consumption, heat generation, and potentially reduce its lifespan. If you need a 5V-compatible device, consider using a different part number or voltage regulator.
To ensure signal integrity when using the 74LCX157FT, follow proper PCB design practices, such as using controlled impedance traces, minimizing trace lengths, and avoiding signal reflections. Additionally, consider using termination resistors, series resistors, or other signal conditioning techniques to maintain signal quality.
The maximum clock frequency supported by the 74LCX157FT is typically around 100MHz, but it can vary depending on the operating conditions and the specific application. Be sure to check the datasheet and consult with the manufacturer's application notes for more information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
74LCX157FT Overview

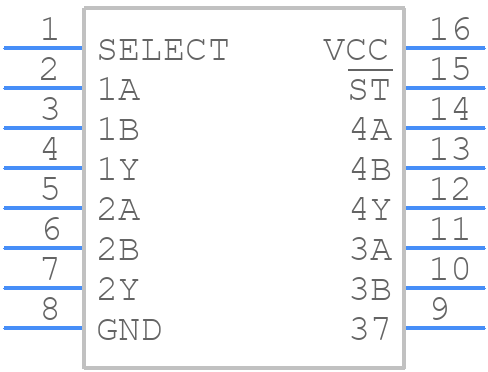

Use the download button to access the 74LCX157FT schematic symbol, PCB footprint, and 3D model.
