74LCX16374MTD - onsemi

Description: Power down high impedance inputs and outputs; Supports live insertion/withdrawal (Note 1); ±24 mA output drive (VCC = 3.0V); Latch-up performance exceeds 500 mA; 5V tolerant inputs and outputs; 6.2 ns tPD max (VCC = 3.3V), 20 µA ICC max; Uses patented noise/EMI reduction circuitry; 2.3V-3.6V VCC specifications provided; ESD performance: Human body model > 2000V Machine model > 200V; Also packaged in plastic Fine-Pitch Ball Grid Array (FBGA)

Download 74LCX16374MTD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

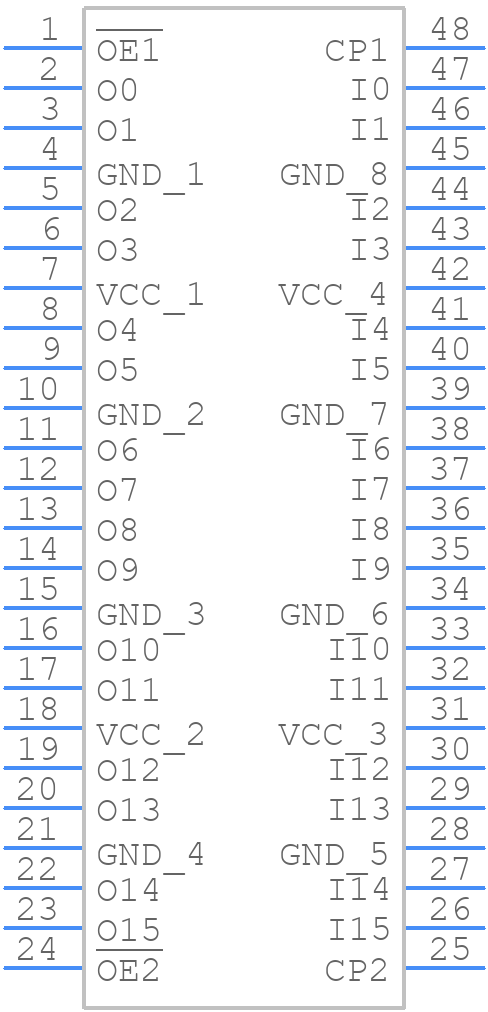

74LCX16374MTD - onsemi - PCB symbol
click to zoom
PCB Footprints
74LCX16374MTD - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - MTD48
click to zoom
3D Models
74LCX16374MTD - onsemi - 3D model - Small Outline Packages - MTD48
click to zoom

74LCX16374MTD Details

  • Manufacturer Part Number:

    74LCX16374MTD

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP-48

  • Manufacturer Package Code:

    948BQ

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Logic IC Type:

    D FLIP-FLOP

  • Moisture Sensitivity Level:

    2

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

74LCX16374MTD Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the 74LCX16374MTD is 250 MHz.
  • Yes, the 74LCX16374MTD is compatible with both 3.3V and 5V systems, making it a versatile component for various applications.
  • The propagation delay of the 74LCX16374MTD is typically around 3.5 ns, but this can vary depending on the operating conditions and load capacitance.
  • Yes, the 74LCX16374MTD is rated for operation up to 125°C, making it suitable for high-temperature applications.
  • Yes, the 74LCX16374MTD is a low-power device, with a typical quiescent current of around 10 μA, making it suitable for power-sensitive applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74LCX16374MTD Overview

Use the download button to access the 74LCX16374MTD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74LCX, or try a keyword search, such as Bus Driver/Transceivers
