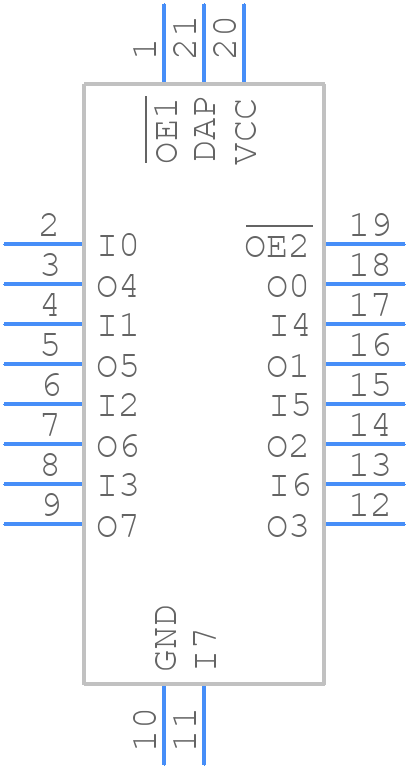

74LCX244BQX - onsemi

74LCX244BQX Details

• Manufacturer Part Number:

  74LCX244BQX

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  WQFN-20

• Package Description:

  DQFN-20

• Manufacturer Package Code:

  510CD

• Country Of Origin:

  Mainland China, Malaysia

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  8 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  6.3

• Control Type:

  ENABLE LOW

• Family:

  LVC/LCX/Z

• JESD-30 Code:

  R-PQCC-N20

• JESD-609 Code:

  e4

• Length:

  4.5 mm

• Logic IC Type:

  BUS DRIVER

• Max I(ol):

  0.024 A

• Moisture Sensitivity Level:

  1

• Number of Bits:

  4

• Number of Functions:

  2

• Number of Ports:

  2

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC20,.1X.18,20

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Prop. Delay@Nom-Sup:

  6.5 ns

• Propagation Delay (tpd):

  7.8 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.8 mm

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  2.5 mm
