74LCX32BQX - onsemi

Description: 5.5 ns tPD max (VCC = 3.3V), 10 µA ICC max; ESD performance:Human body model > 2000VMachine model > 150V; 5V tolerant inputs; Implements patented noise/EMI reduction circuitry; Leadless Pb-Free DQFN package; 2.3V-3.6V VCC specifications provided; ±24 mA output drive (VCC = 3.0V); Latch-up performance exceeds JEDEC 78 conditions; Power down high impedance inputs and outputs

Download 74LCX32BQX Model
Schematic

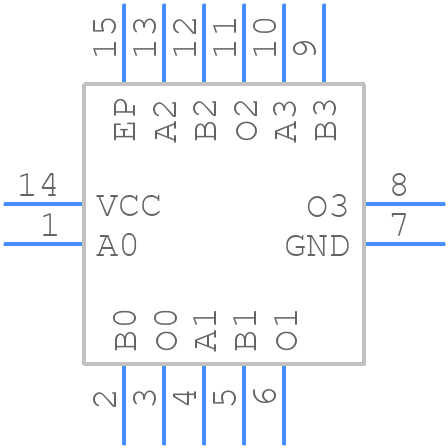

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74LCX32BQX - onsemi PCB footprint - Other - Other - QFN14 3.0X2.5, 0.5P
click to zoom
3D Models
74LCX32BQX - onsemi  - 3D model - Other - QFN14 3.0X2.5, 0.5P
click to zoom

74LCX32BQX Details

  • Manufacturer Part Number:

    74LCX32BQX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN-14

  • Manufacturer Package Code:

    510CB

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    6.3

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    R-XQCC-N14

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    OR GATE

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC14,.1X.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    5.5 ns

  • Propagation Delay (tpd):

    6.6 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

74LCX32BQX Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the 74LCX32BQX is 100 MHz.
  • Yes, the 74LCX32BQX is 3.3V tolerant, meaning it can accept input voltages up to 3.6V without damage.
  • The propagation delay of the 74LCX32BQX is typically around 3.5 ns at 25°C and 3.3V supply voltage.
  • While the 74LCX32BQX is 3.3V tolerant, it is not recommended to use it in a 5V system without proper voltage translation or level shifting, as it may not function correctly or may be damaged.
  • The power consumption of the 74LCX32BQX is typically around 20 μA per gate at 3.3V supply voltage and 25°C.
