74LV165DB,118 - Nexperia

Description: 74LV165 - 8-bit parallel-in/serial-out shift register@en-us

Download 74LV165DB,118 Model

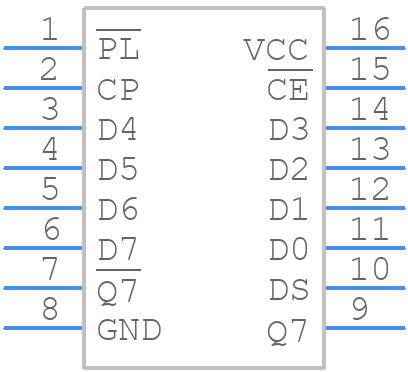

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74LV165DB,118 - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SOT338-1
click to zoom
3D Models
74LV165DB,118 - Nexperia  - 3D model - Small Outline Packages - SOT338-1
click to zoom

74LV165DB,118 Details

  • Manufacturer Part Number:

    74LV165DB,118

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP1

  • Package Description:

    SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT338-1

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    1994-08-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Additional Feature:

    CLOCK INHIBIT

  • Count Direction:

    RIGHT

  • Family:

    LV/LV-A/LVX/H

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    6.2 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    PARALLEL IN SERIAL OUT

  • Max Frequency@Nom-Sup:

    20000000 Hz

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    50 mA

  • Propagation Delay (tpd):

    76 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    5.3 mm

  • fmax-Min:

    30 MHz

74LV165DB,118 Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the 74LV165DB,118 is 100 MHz, but it depends on the specific application and operating conditions. It's recommended to consult the datasheet and perform simulations to determine the optimal clock frequency for your design.
  • To ensure reliable data transfer, make sure to follow proper PCB design guidelines, use a stable clock signal, and maintain a consistent data rate. Additionally, consider using a buffer or repeater to boost the signal if the transmission distance is long.
  • The power consumption of the 74LV165DB,118 depends on the operating frequency, voltage, and load conditions. According to the datasheet, the typical power consumption is around 10 μA at 3.3 V and 100 kHz. However, it's recommended to consult the datasheet and perform power analysis for your specific application.
  • The 74LV165DB,118 is designed for 3.3V operation, but it can tolerate 5V input levels. However, it's not recommended to operate the device at 5V continuously, as it may affect its reliability and lifespan. If you need to interface with a 5V system, consider using a level translator or voltage regulator.
  • To minimize clock skew and jitter, use a high-quality clock source, ensure proper PCB routing, and consider using a clock buffer or jitter attenuator. Additionally, make sure to follow the recommended operating conditions and clock frequency range specified in the datasheet.
