74LVC08ABZZ - Nexperia

Description: Quad 2-input AND gate ,body 2 mm × 2 mm × 0.48 mm ,SOT8014-1 (DHXQFN14) ,250 mw .

Download 74LVC08ABZZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

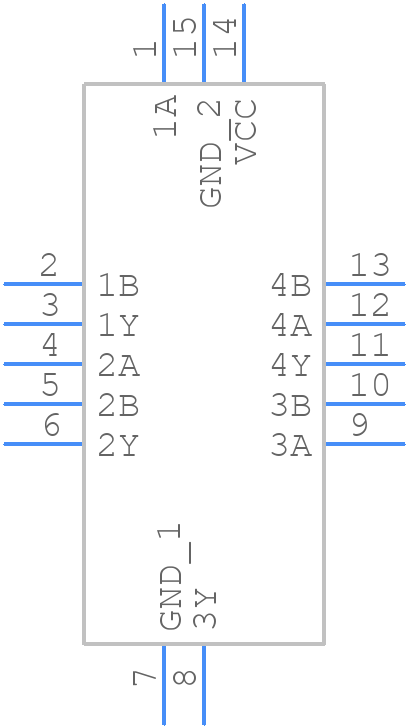

Symbol
74LVC08ABZZ - Nexperia - PCB symbol
click to zoom
PCB Footprints
74LVC08ABZZ - Nexperia PCB footprint - Other - Other - SOT8014-1 -2025-31
click to zoom
3D Models
74LVC08ABZZ - Nexperia - 3D model - Other - SOT8014-1 -2025-31
click to zoom

74LVC08ABZZ Details

  • Manufacturer Part Number:

    74LVC08ABZZ

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Nexperia

  • Logic IC Type:

    AND GATE

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    40

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74LVC08ABZZ Overview

Use the download button to access the 74LVC08ABZZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74LVC, or try a keyword search, such as Gates
