74LVC11D-Q100J - Nexperia

Description: 74LVC11-Q100 - Triple 3-input AND gate@en-us

Download 74LVC11D-Q100J Model

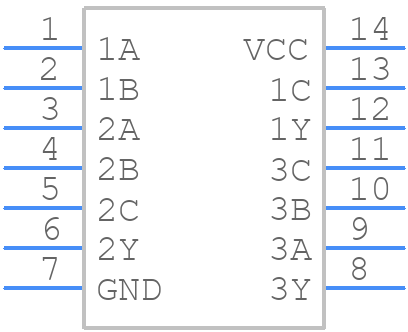

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74LVC11D-Q100J - Nexperia PCB footprint - Other - Other - 74LVC11D-Q100J
click to zoom
3D Models
74LVC11D-Q100J - Nexperia  - 3D model - Other - 74LVC11D-Q100J
click to zoom

74LVC11D-Q100J Details

  • Manufacturer Part Number:

    74LVC11D-Q100J

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    SOT108-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    6

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.65 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    AND GATE

  • Max I(ol):

    0.024 A

  • Number of Functions:

    3

  • Number of Inputs:

    3

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Power Supply Current-Max (ICC):

    0.04 mA

  • Prop. Delay@Nom-Sup:

    7.2 ns

  • Propagation Delay (tpd):

    14.1 ns

  • Schmitt Trigger:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

74LVC11D-Q100J Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74LVC11D-Q100J is 1.65 V to 3.6 V.
  • Yes, the 74LVC11D-Q100J is compatible with 5V logic, but it is not recommended to operate it at 5V continuously. It can tolerate 5V input levels, but the output voltage will be limited to the supply voltage (VCC).
  • The maximum clock frequency that the 74LVC11D-Q100J can handle is 100 MHz.
  • No, the 74LVC11D-Q100J does not have built-in pull-up resistors. External pull-up resistors are required if the inputs are not driven.
  • Yes, the 74LVC11D-Q100J is suitable for high-temperature applications up to 125°C. It is an automotive-grade device with an extended temperature range.
