74LVC16374APAG8 - Renesas Electronics

Description: The 74LVC16374A 16-bit high-speed, low-power edge-triggered D-type flip-flop is ideal for use as a buffer register for data synchronization and storage and can operate as two 8-bit registers or one 16-bit register with common clock. All pins of the 74LVC16374A can be driven from either 3.3V or 5V devices which allows the use of this device as a translator in a mixed 3.3V/ 5V supply system. The 74LVC16374A operates at -40C to +85C

Download 74LVC16374APAG8 Model

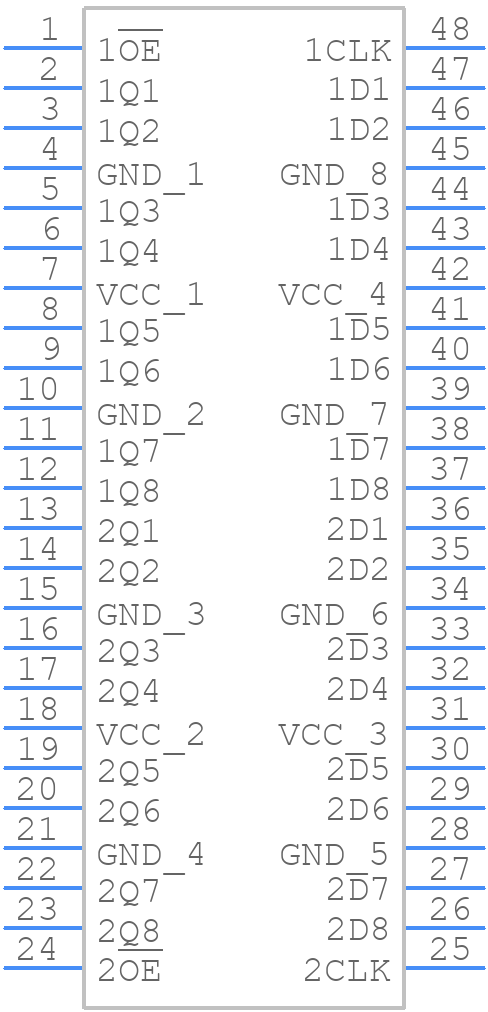

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74LVC16374APAG8 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PAG48
click to zoom
3D Models
74LVC16374APAG8 - Renesas Electronics  - 3D model - Small Outline Packages - PAG48
click to zoom

74LVC16374APAG8 Details

  • Manufacturer Part Number:

    74LVC16374APAG8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    PAG48

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    5V TOLERANT INPUTS AND OUTPUTS

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e3

  • Length:

    12.5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max Frequency@Nom-Sup:

    150000000 Hz

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    2

  • Number of Ports:

    2

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP48,.3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    100 mA

  • Prop. Delay@Nom-Sup:

    4.5 ns

  • Propagation Delay (tpd):

    4.9 ns

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-STD-883

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    6.1 mm

74LVC16374APAG8 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74LVC16374APAG8 is 1.65V to 3.6V.
  • To ensure signal integrity, use a low-impedance PCB design, keep signal traces short, and use termination resistors or series resistors to reduce signal reflections. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
  • While the 74LVC16374APAG8 is designed for low-voltage operation, it can tolerate 5V inputs, but the output voltage will be limited to the supply voltage (VCC). However, it's recommended to use a voltage regulator or level shifter to ensure reliable operation and prevent damage to the device.
  • To ensure proper operation, power up the devices in a sequence that prevents backpowering or voltage conflicts. Typically, power up the devices in the order of lowest voltage to highest voltage, and ensure that the power supply voltage is stable before applying clock or input signals.
  • The maximum clock frequency supported by the 74LVC16374APAG8 is 100 MHz, but this can vary depending on the specific application, PCB design, and operating conditions. It's recommended to consult the datasheet and perform simulations or testing to determine the maximum clock frequency for your specific use case.
