74LVC16601APVG8 - Renesas Electronics

Description: The 74LVC16601A 18-bit universal bus transceiver combines D-type latches and D-type flip-flops to allow data flow in transparent, latched and clocked modes. All pins can be driven from either 3.3V or 5V devices which allows the use of this device as a translator in a mixed 3.3V/5V supply system. The 74LVC16601A operates at -40C to +85C

Download 74LVC16601APVG8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

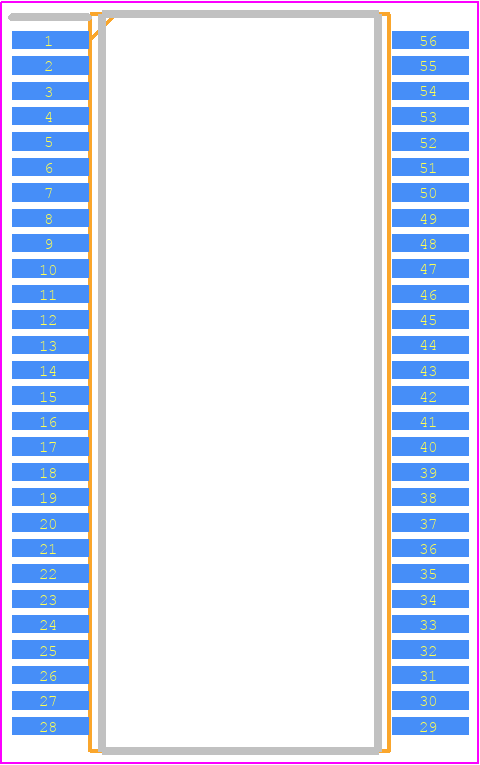

74LVC16601APVG8 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PVG56
click to zoom
3D Models
74LVC16601APVG8 - Renesas Electronics  - 3D model - Small Outline Packages - PVG56
click to zoom

74LVC16601APVG8 Details

  • Manufacturer Part Number:

    74LVC16601APVG8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-56

  • Pin Count:

    56

  • Manufacturer Package Code:

    PVG56

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION

  • Control Type:

    INDEPENDENT CONTROL

  • Count Direction:

    BIDIRECTIONAL

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    R-PDSO-G56

  • JESD-609 Code:

    e3

  • Length:

    18.415 mm

  • Load Capacitance (CL):

    30 pF

  • Logic IC Type:

    REGISTERED BUS TRANSCEIVER

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    56

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP56,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.01 mA

  • Prop. Delay@Nom-Sup:

    5.3 ns

  • Propagation Delay (tpd):

    6.3 ns

  • Seated Height-Max:

    2.794 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    7.5 mm

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74LVC16601APVG8 Overview

Use the download button to access the 74LVC16601APVG8 schematic symbol, PCB footprint, and 3D model.
