Part Image

74LVC573AD,112 - Nexperia

Description: 74LVC573A - Octal D-type transparent latch with 5 V tolerant inputs/outputs; 3-state@en-us

Download 74LVC573AD,112 Model

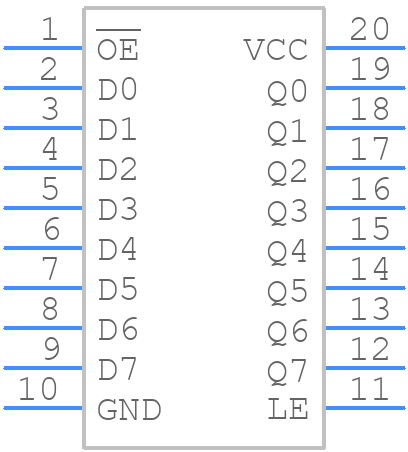

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74LVC573AD,112 - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SO20  SOT163-1
click to zoom
3D Models
74LVC573AD,112 - Nexperia  - 3D model - Small Outline Packages - SO20  SOT163-1
click to zoom

74LVC573AD,112 Details

  • Manufacturer Part Number:

    74LVC573AD,112

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOP

  • Package Description:

    7.50 MM, PLASTIC, MS-013, SOT-163-1, SO-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    SOT163-1

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    1996-02-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Additional Feature:

    BROADSIDE VERSION OF 373

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Logic IC Type:

    BUS DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    9.5 ns

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD SILVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74LVC573AD,112 Overview

Use the download button to access the 74LVC573AD,112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74LVC, or try a keyword search, such as Bus Driver/Transceivers

Parts related to 74LVC573AD,112

Showing 0 results

74LVC573AD,112 Alternates

Showing results

Image Part Number Model
Part Image MC74LCX573DW Motorola Mobility LLC

LVC/LCX/Z SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, PLASTIC, SOIC-20

Part Image 74LVC573AD-T NXP Semiconductors

LVC/LCX/Z SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, 7.50 MM, PLASTIC, MS-013, SOT-163-1, SO-20

Part Image SN74LVC573DWR Texas Instruments

Octal Transparent D-Type Latch With 3-State Outputs 20-SOIC -40 to 85

Part Image QS74LVC573ASO Quality Semiconductor Inc

Bus Driver, LVC/LCX/Z Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20,

Part Image QS74LVC573ASOX Quality Semiconductor Inc

Bus Driver, LVC/LCX/Z Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20,

For a full list of alternate parts for 74LVC573AD,112, check out Findchips.com
