74LVC74ABZZ - Nexperia

Description: Dual D-type flip-flop with set and reset; positive-edge trigger ,body 2 mm × 2 mm × 0.48 mm ,SOT8014-1 (DHXQFN14) ,+6.5 v ,250 mW

Download 74LVC74ABZZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

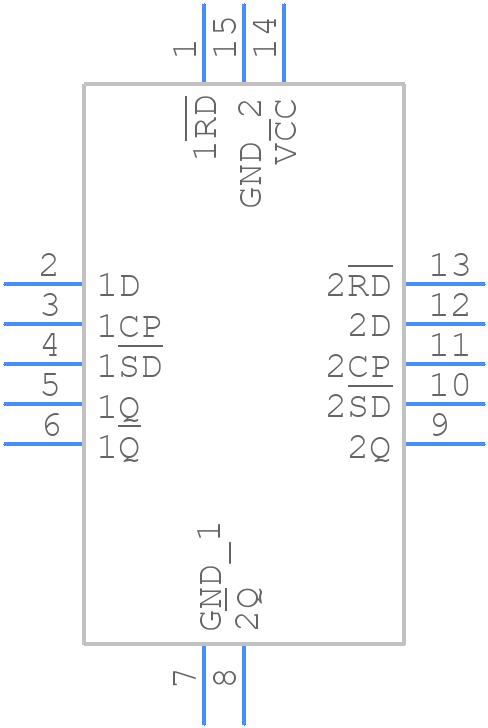

74LVC74ABZZ - Nexperia - PCB symbol
click to zoom
PCB Footprints
74LVC74ABZZ - Nexperia PCB footprint - Other - Other - SOT8014-1 (DHXQFN14)-2025-7
click to zoom
3D Models
74LVC74ABZZ - Nexperia - 3D model - Other - SOT8014-1 (DHXQFN14)-2025-7
click to zoom

74LVC74ABZZ Details

  • Manufacturer Part Number:

    74LVC74ABZZ

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Nexperia

  • Logic IC Type:

    D FLIP-FLOP

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    40

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74LVC74ABZZ Overview

Use the download button to access the 74LVC74ABZZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74LVC, or try a keyword search, such as FF/Latches
