Part Image

74LVC74ADB,118 - Nexperia

Description: 74LVC74A - Dual D-type flip-flop with set and reset; positive-edge trigger@en-us

Download 74LVC74ADB,118 Model

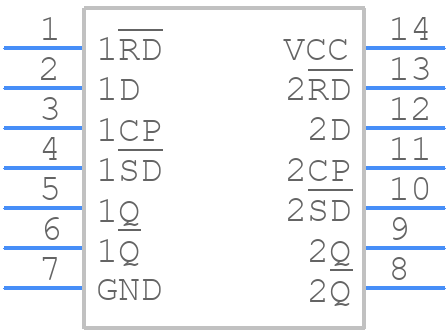

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74LVC74ADB,118 - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SO14 (SOT108-1)
click to zoom
3D Models
74LVC74ADB,118 - Nexperia  - 3D model - Small Outline Packages - SO14 (SOT108-1)
click to zoom

74LVC74ADB,118 Details

  • Manufacturer Part Number:

    74LVC74ADB,118

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP1

  • Package Description:

    SSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    SOT337-1

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    1998-06-17

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    6.2 mm

  • Logic IC Type:

    D FLIP-FLOP

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    7.5 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    5.3 mm

  • fmax-Min:

    120 MHz

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74LVC74ADB,118 Overview

Use the download button to access the 74LVC74ADB,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74LVC, or try a keyword search, such as FF/Latches

Parts related to 74LVC74ADB,118

Showing 0 results

74LVC74ADB,118 Alternates

Showing results

Image Part Number Model
Part Image 74LVC74ADB,112 Nexperia

74LVC74A - Dual D-type flip-flop with set and reset; positive-edgen trigger@en-us SSOP1 14-Pin

Part Image 935260735118 NXP Semiconductors

IC LVC/LCX/Z SERIES, DUAL POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, PDSO14, 5.30 MM, PLASTIC, MO-150, SOT-337-1, SSOP-14, FF/Latch

Part Image 74LVC74ADB,112 NXP Semiconductors

74LVC74A - Dual D-type flip-flop with set and reset; positive-edge trigger SSOP1 14-Pin

Part Image 74LVC74ADB Nexperia

D Flip-Flop

Part Image 74LVC74ADB-T Nexperia

D Flip-Flop

For a full list of alternate parts for 74LVC74ADB,118, check out Findchips.com
