74LVCH16244ADGG-Q100 - NXP

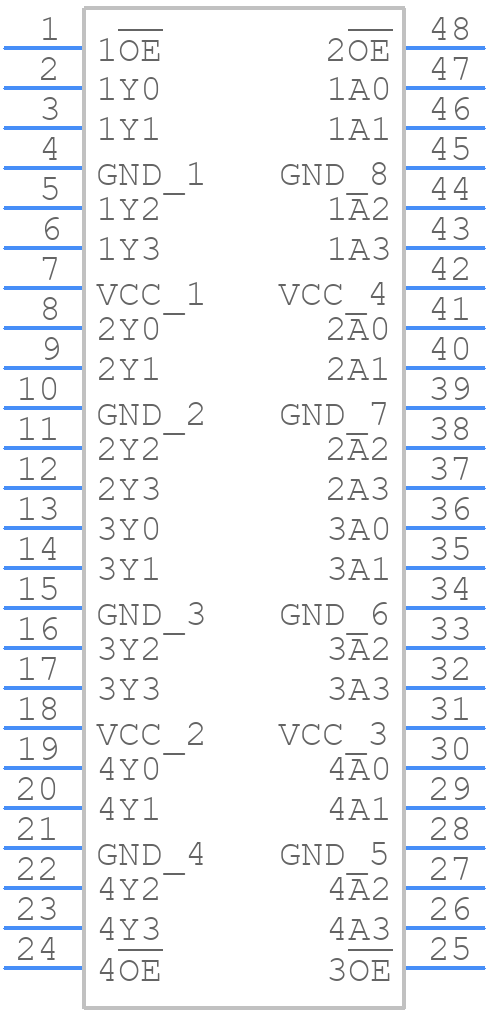

74LVCH16244ADGG-Q100 Details

• Manufacturer Part Number:

  74LVCH16244ADGG-Q100

• Part Life Cycle Code:

  Transferred

• Part Package Code:

  TSSOP

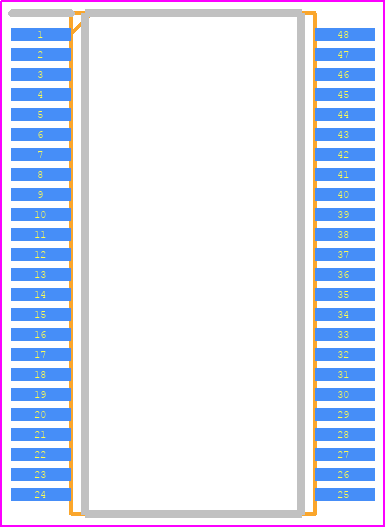

• Package Description:

  6.10 MM, PLASTIC, MO-153, SOT362-1, TSSOP-48

• Pin Count:

  48

• HTS Code:

  8542.39.00.60

• Manufacturer:

  NXP Semiconductors

• Additional Feature:

  SEATED-HGT NOM

• Family:

  LVC/LCX/Z

• JESD-30 Code:

  R-PDSO-G48

• Length:

  12.5 mm

• Logic IC Type:

  BUS DRIVER

• Number of Bits:

  4

• Number of Functions:

  4

• Number of Ports:

  2

• Number of Terminals:

  48

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Propagation Delay (tpd):

  11.3 ns

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Width:

  6.1 mm
