74LVX04M - onsemi

Description: Obsolete - Low Voltage Hex Inverter

Download 74LVX04M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

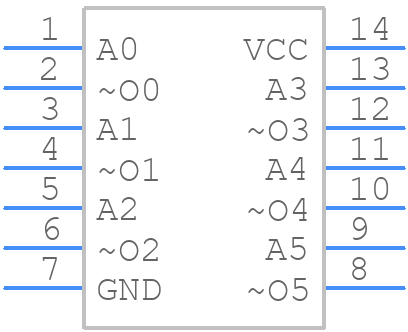

Symbol
74LVX04M - onsemi - PCB symbol
click to zoom
PCB Footprints
74LVX04M - onsemi PCB footprint - Other - Other - SOIC127P600X175-14N
click to zoom
3D Models
74LVX04M - onsemi - 3D model - Other - SOIC127P600X175-14N
click to zoom

74LVX04M Details

  • Manufacturer Part Number:

    74LVX04M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-14

  • Package Description:

    0.150 INCH, MS-012, SOIC-14

  • Manufacturer Package Code:

    751EF

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Family:

    LV/LV-A/LVX/H

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.6235 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    INVERTER

  • Max I(ol):

    0.004 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    6

  • Number of Inputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    11 ns

  • Propagation Delay (tpd):

    16 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    1.753 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

74LVX04M Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the 74LVX04M is typically around 100 MHz, but it can vary depending on the specific application and operating conditions.
  • It is recommended to power up the VCC pin before applying any input signals, and to power down the VCC pin after removing all input signals. This helps to prevent unwanted output states and ensures proper device operation.
  • The recommended operating voltage range for the 74LVX04M is 1.65V to 3.6V, with a typical operating voltage of 3.3V. Operating outside of this range may affect device performance and reliability.
  • It is recommended to use a termination resistor (e.g. 50 ohms) at the output of the 74LVX04M to prevent signal reflections and ensure proper signal integrity.
  • The maximum output current of the 74LVX04M is typically around 24 mA per output pin, but it can vary depending on the specific application and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74LVX04M Overview

Use the download button to access the 74LVX04M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74LVX, or try a keyword search, such as Gates
