74LVX14MTCX - onsemi

Description: Input voltage level translation from 5V to 3V; Guaranteed simultaneous switching noise level and dynamic threshold performance; Ideal for low power/low noise 3.3V applications

Download 74LVX14MTCX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

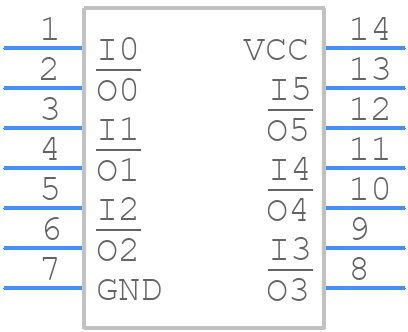

Symbol
74LVX14MTCX - onsemi - PCB symbol
click to zoom
PCB Footprints
74LVX14MTCX - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP−14 CASE 948G ISSUE C
click to zoom
3D Models
74LVX14MTCX - onsemi - 3D model - Small Outline Packages - TSSOP−14 CASE 948G ISSUE C
click to zoom

74LVX14MTCX Details

  • Manufacturer Part Number:

    74LVX14MTCX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-14 WB

  • Package Description:

    4.40 MM, MO-153AB, TSSOP-14

  • Manufacturer Package Code:

    948G

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    5.85

  • Family:

    LV/LV-A/LVX/H

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    INVERTER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    6

  • Number of Inputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    16 ns

  • Propagation Delay (tpd):

    23 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    YES

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

74LVX14MTCX Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74LVX14MTCX is 1.65V to 3.6V.
  • To ensure signal integrity, use a low-impedance PCB design, minimize trace lengths, and use termination resistors as needed to reduce signal reflections.
  • While the 74LVX14MTCX is designed for low-voltage applications, it can tolerate 5V inputs, but the output voltage will be limited to the supply voltage (VCC). However, it's recommended to use a voltage regulator or level shifter to ensure compatibility.
  • The maximum clock frequency supported by the 74LVX14MTCX is 100 MHz, but this can vary depending on the specific application and operating conditions.
  • To ensure proper power sequencing, ensure that the power supply voltage (VCC) is stable before applying clock or input signals to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74LVX14MTCX Overview

Use the download button to access the 74LVX14MTCX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74LVX, or try a keyword search, such as Gates
