74VHC14M - onsemi

Description: Last Shipments - Hex Schmitt Inverter

Download 74VHC14M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

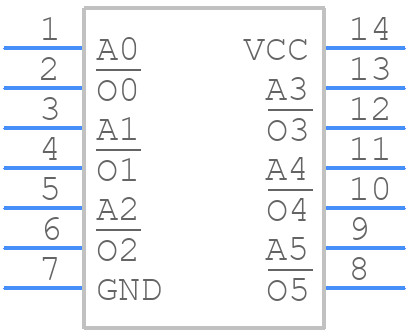

74VHC14M - onsemi - PCB symbol
click to zoom
PCB Footprints
74VHC14M - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP−14 WB CASE 948G ISSUE C_2024
click to zoom
3D Models
74VHC14M - onsemi - 3D model - Small Outline Packages - TSSOP−14 WB CASE 948G ISSUE C_2024
click to zoom

74VHC14M Details

  • Manufacturer Part Number:

    74VHC14M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-14

  • Package Description:

    SOIC-14

  • Manufacturer Package Code:

    751EF

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Family:

    AHC/VHC/H/U/V

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.625 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    INVERTER

  • Max I(ol):

    0.008 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    6

  • Number of Inputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    12 ns

  • Propagation Delay (tpd):

    18.5 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    YES

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

74VHC14M Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the 74VHC14M is typically 100 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure proper power supply, connect VCC to a stable 5V power source, and GND to a reliable ground connection. Also, decouple the power supply with a 0.1uF capacitor to reduce noise and ensure stable operation.
  • The 74VHC14M can sink or source up to 8mA of current per output pin, but it's recommended to limit the current to 4mA or less to ensure reliable operation.
  • The Schmitt trigger inputs of the 74VHC14M have a built-in hysteresis, which helps to reduce noise and oscillations. To take advantage of this feature, ensure that the input signals have a clean, stable waveform, and avoid slow-rising or slow-falling edges.
  • Yes, the 74VHC14M is compatible with 3.3V systems, but you may need to adjust the input signal levels and ensure that the output voltage is within the acceptable range for your system.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74VHC14M Overview

Use the download button to access the 74VHC14M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74VHC, or try a keyword search, such as Gates
