74VHC161FT - Toshiba

Description: 4-bit Binary Counter, TSSOP16B

Download 74VHC161FT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

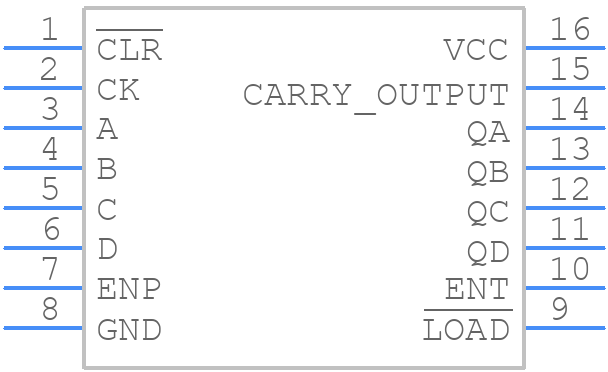

74VHC161FT - Toshiba - PCB symbol
click to zoom
PCB Footprints
74VHC161FT - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - P-TSSOP16-0044-0.65-001
click to zoom
3D Models
74VHC161FT - Toshiba - 3D model - Small Outline Packages - P-TSSOP16-0044-0.65-001
click to zoom

74VHC161FT Details

  • Manufacturer Part Number:

    74VHC161FT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Count Direction:

    UP

  • Family:

    AHC/VHC/H/U/V

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Load/Preset Input:

    YES

  • Logic IC Type:

    BINARY COUNTER

  • Mode of Operation:

    SYNCHRONOUS

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Propagation Delay (tpd):

    18.5 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    4.4 mm

  • fmax-Min:

    115 MHz

74VHC161FT Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74VHC161FT is 2.0V to 5.5V, although it can operate down to 1.65V for some applications.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and minimizing power consumption.
  • The maximum clock frequency supported by the 74VHC161FT is 100 MHz, although this may vary depending on the specific application and operating conditions.
  • Asynchronous inputs to the 74VHC161FT should be synchronized using a flip-flop or other synchronization circuit to prevent metastability and ensure reliable operation.
  • The recommended termination scheme for the 74VHC161FT's outputs is a series resistor and parallel capacitor (RC) termination, which helps to reduce signal reflections and improve signal integrity.
