74VHC4052AFT(BJ) - Toshiba

Description: IC MUX/DEMUX DUAL 4X1 16TSSOP

Download 74VHC4052AFT(BJ) Model

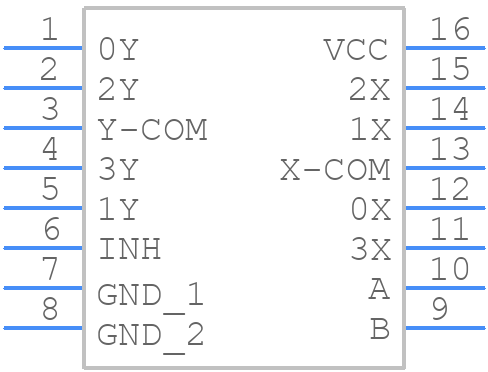

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74VHC4052AFT(BJ) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP16B
click to zoom
3D Models
74VHC4052AFT(BJ) - Toshiba  - 3D model - Small Outline Packages - TSSOP16B
click to zoom

74VHC4052AFT(BJ) Details

  • Manufacturer Part Number:

    74VHC4052AFT(BJ)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6.75

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Number of Channels:

    2

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    45 dB

  • On-state Resistance Match-Nom:

    10 Ω

  • On-state Resistance-Max (Ron):

    125 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    37 ns

  • Switch-on Time-Max:

    37 ns

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

74VHC4052AFT(BJ) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74VHC4052AFT(BJ) is 2.0V to 5.5V.
  • To ensure the analog switches are properly turned on and off, make sure to apply a valid logic signal to the control input (S) and provide a valid VCC supply voltage.
  • The maximum frequency of operation for the 74VHC4052AFT(BJ) is typically up to 100 MHz, but it depends on the specific application and operating conditions.
  • To minimize power consumption, use a low VCC supply voltage, reduce the clock frequency, and minimize the number of switching operations.
  • The maximum current rating for the analog switches is typically up to 50mA, but it depends on the specific application and operating conditions.
