Part Image

74VHC9125FT - Toshiba

Description: 5-Bit Universal Schmitt Buffer with 3-State Outputs

Download 74VHC9125FT Model

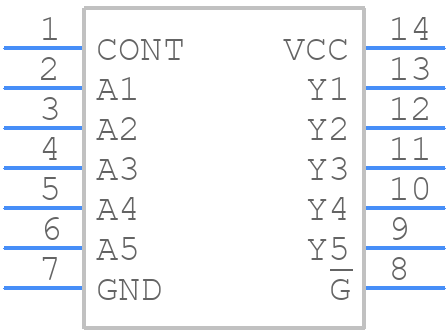

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74VHC9125FT - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-14
click to zoom
3D Models
74VHC9125FT - Toshiba  - 3D model - Small Outline Packages - TSSOP-14
click to zoom

74VHC9125FT Details

  • Manufacturer Part Number:

    74VHC9125FT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    NO HI-IMPEDANCE STATE FOR 1 BUFFER

  • Family:

    AHC/VHC/H/U/V

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    5 mm

  • Logic IC Type:

    BUS DRIVER

  • Number of Bits:

    5

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Propagation Delay (tpd):

    15 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

74VHC9125FT Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74VHC9125FT is 2.0V to 5.5V.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking and airflow, and ensuring that the device is operated within its specified temperature range (-40°C to 125°C).
  • The maximum clock frequency that the 74VHC9125FT can handle is 100 MHz.
  • It is recommended to follow proper power sequencing guidelines when using the 74VHC9125FT in a system, such as powering up the VCC pin before the input signals, and ensuring that the power supply is stable before applying input signals.
  • The recommended termination scheme for the 74VHC9125FT is to use a series resistor of 22 ohms to 33 ohms at the output of each driver, and to use a parallel terminator of 50 ohms to 100 ohms at the far end of the transmission line.
