74VHC9164FT - Toshiba

Description: 8-Bit Shift Register (P-IN, S-OUT/S-IN, P-OUT)

Download 74VHC9164FT Model

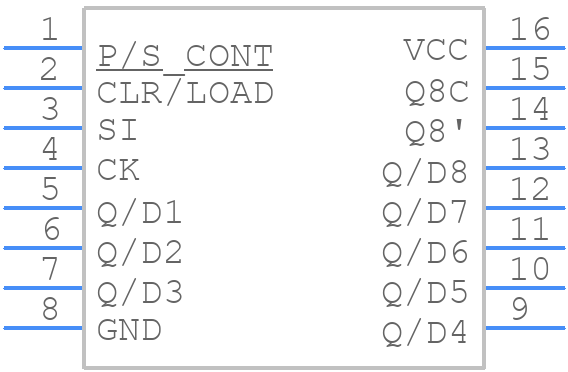

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74VHC9164FT - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP16B
click to zoom
3D Models
74VHC9164FT - Toshiba  - 3D model - Small Outline Packages - TSSOP16B
click to zoom

74VHC9164FT Details

  • Manufacturer Part Number:

    74VHC9164FT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Count Direction:

    RIGHT

  • Family:

    AHC/VHC/H/U/V

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Logic IC Type:

    SERIAL IN PARALLEL OUT

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Propagation Delay (tpd):

    21.6 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    4.4 mm

  • fmax-Min:

    90 MHz

74VHC9164FT Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74VHC9164FT is 2.0V to 5.5V.
  • To ensure reliable data retention, the 74VHC9164FT requires a minimum VCC of 2.0V and a maximum VCC of 5.5V. Additionally, the device should be operated within the recommended temperature range of -40°C to 125°C.
  • The maximum clock frequency supported by the 74VHC9164FT is 20MHz.
  • During power-up, VCC should be applied before any input signals. During power-down, all input signals should be held at a valid logic level until VCC reaches 0V. This ensures that the device powers up and down correctly and prevents any potential latch-up or damage.
  • To minimize noise and ensure reliable operation, it is recommended to follow good PCB layout and routing practices, such as keeping signal traces short and away from power and ground planes, using decoupling capacitors, and avoiding vias under the device.
