74VHC9541FT - Toshiba

Description: Buffer, Non-Inverting 1 Element 8 Bit per Element 3-State Output 20-TSSOPB

Download 74VHC9541FT Model
Schematic

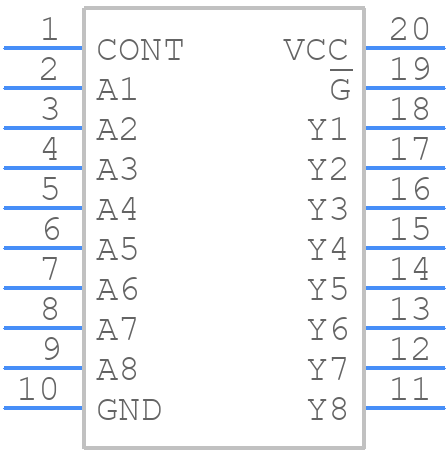

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74VHC9541FT - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - P-TSSOP20-0044-0.65-001-2
click to zoom
3D Models
74VHC9541FT - Toshiba  - 3D model - Small Outline Packages - P-TSSOP20-0044-0.65-001-2
click to zoom

74VHC9541FT Details

  • Manufacturer Part Number:

    74VHC9541FT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Family:

    AHC/VHC/H/U/V

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Logic IC Type:

    BUS DRIVER

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Propagation Delay (tpd):

    15 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

74VHC9541FT Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74VHC9541FT is 2.0V to 5.5V.
  • To ensure reliable data transfer, ensure that the input signals are clean and free of noise, and that the device is operated within the recommended voltage and temperature ranges.
  • The maximum clock frequency supported by the 74VHC9541FT is 100 MHz.
  • To ensure proper operation, power-up and power-down sequencing should be handled carefully, with the power supply voltage (VCC) being applied before the clock signal, and the clock signal being removed before the power supply voltage.
  • The maximum current rating for the 74VHC9541FT is 20mA per pin, with a total device current rating of 100mA.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74VHC9541FT Overview

Use the download button to access the 74VHC9541FT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74VHC, or try a keyword search, such as Bus Driver/Transceivers
