74VHCT574AFT(BE) - Toshiba

Description: Flip Flops CMOS Logic IC Series

Download 74VHCT574AFT(BE) Model

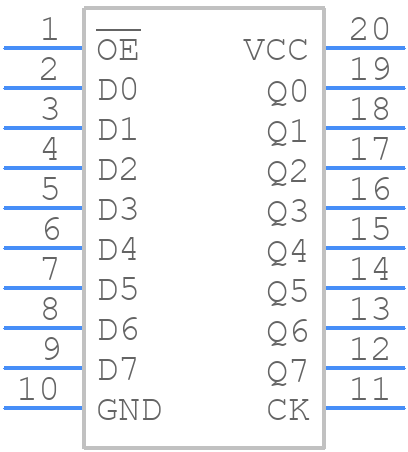

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74VHCT574AFT(BE) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP20B_1
click to zoom
3D Models
74VHCT574AFT(BE) - Toshiba  - 3D model - Small Outline Packages - TSSOP20B_1
click to zoom

74VHCT574AFT(BE) Details

  • Manufacturer Part Number:

    74VHCT574AFT(BE)

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TSSOP-20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    AHCT/VHCT/VT

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.008 A

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Power Supply Current-Max (ICC):

    75 mA

  • Prop. Delay@Nom-Sup:

    11.5 ns

  • Propagation Delay (tpd):

    13 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    4.4 mm

74VHCT574AFT(BE) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74VHCT574AFT(BE) is 4.5V to 5.5V.
  • Yes, the 74VHCT574AFT(BE) is compatible with 3.3V logic, but it is recommended to use a voltage regulator to ensure a stable 3.3V supply.
  • The maximum clock frequency supported by the 74VHCT574AFT(BE) is 100 MHz.
  • No, the 74VHCT574AFT(BE) does not have built-in pull-up resistors. External pull-up resistors are required for proper operation.
  • The 74VHCT574AFT(BE) is rated for operation up to 125°C, making it suitable for high-temperature applications.
