75705-1124 - Molex

Description: GbX I-Trac Vertical Header Module, 1.85mm by 3.70mm Pitch, Unguided, Dual End Walls, 11 Rows, 10 Columns, 220 Circuits, Mating Pin Length 5.70mm

Download 75705-1124 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
75705-1124 - Molex - PCB symbol
click to zoom
PCB Footprints

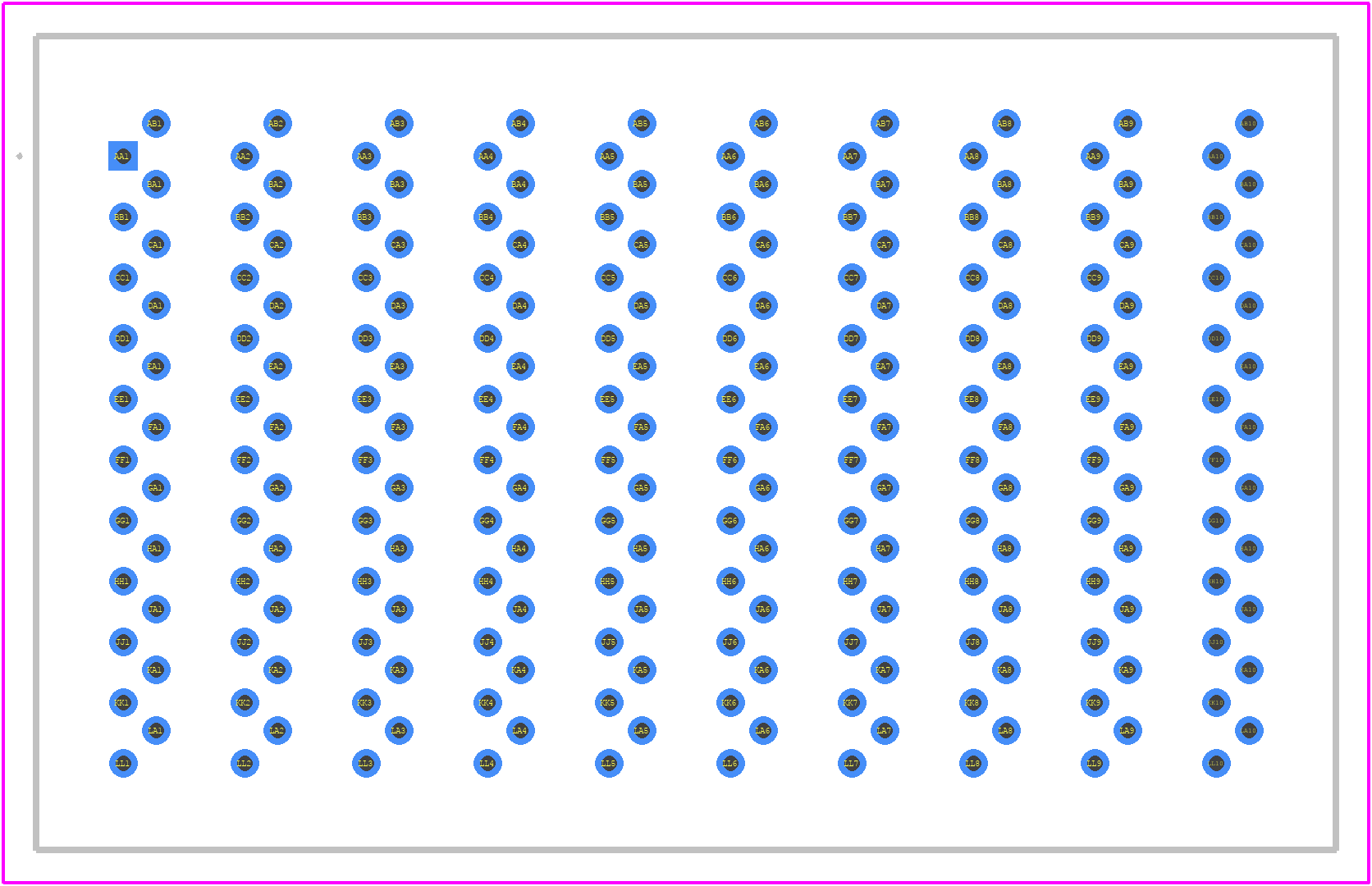

75705-1124 - Molex PCB footprint - Other - Other - 75705-1124-2
click to zoom
3D Models
75705-1124 - Molex - 3D model - Other - 75705-1124-2
click to zoom

75705-1124 Details

  • Manufacturer Part Number:

    75705-1124

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Body Breadth:

    0.976 inch

  • Body Depth:

    0.638 inch

  • Body Length:

    1.555 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    BLADE PIN-SKT

  • Dielectric Withstanding Voltage:

    750VAC V

  • Durability:

    200 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.145 inch

  • Mating Contact Row Spacing:

    0.073 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    22

  • Number of Rows Loaded:

    11

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    .9906 mm

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.083 inch

  • Terminal Pitch:

    3.7 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    110

75705-1124 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 75705-1124 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The 75705-1124 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor or harsh environments, it's essential to take additional measures to ensure the connector is properly sealed and protected from the elements.
  • While the datasheet recommends using AWG 20-24 wire, it's possible to use other wire sizes with the 75705-1124 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or disconnection.
  • Yes, when designing the PCB layout, ensure that the connector is placed in a location that allows for easy access and mating. Also, consider the connector's footprint and ensure that there is sufficient clearance around the connector to prevent interference with other components.
