75705-1602 - Molex

75705-1602 Details

• Manufacturer Part Number:

  75705-1602

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  13 Weeks

• Manufacturer:

  Molex

• YTEOL:

  7

• Body Breadth:

  0.976 inch

• Body Depth:

  0.638 inch

• Body Length:

  0.868 inch

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  AU ON NI

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  MALE

• Contact Material:

  COPPER ALLOY

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  10 mΩ

• Contact Style:

  BLADE PIN-SKT

• Dielectric Withstanding Voltage:

  750VAC V

• Durability:

  200 Cycles

• Filter Feature:

  NO

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  GLASS FILLED LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.145 inch

• Mating Contact Row Spacing:

  0.073 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  22

• Number of Rows Loaded:

  11

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

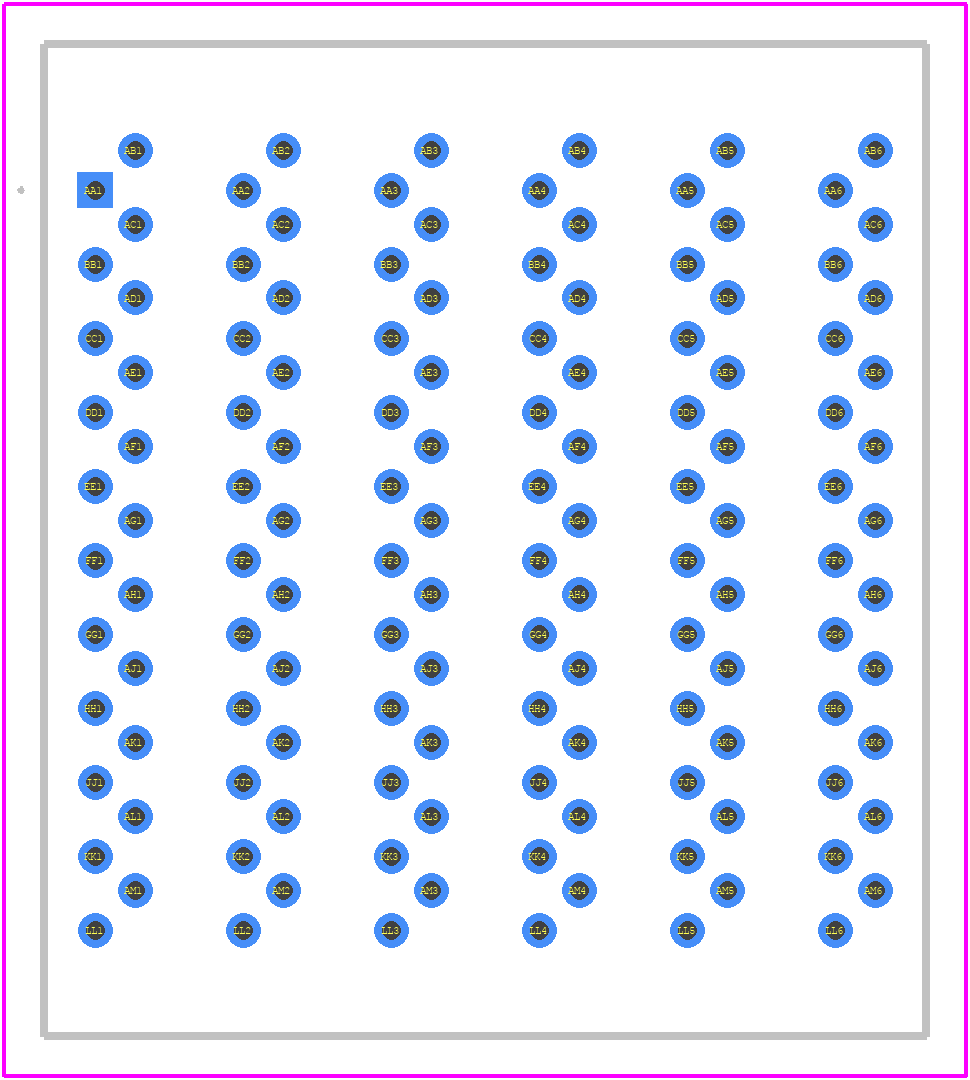

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  .9906 mm

• Plating Thickness:

  30u inch

• Polarization Key:

  2WALL SHROUD

• Rated Current (Signal):

  1 A

• Reference Standard:

  UL

• Terminal Length:

  0.083 inch

• Terminal Pitch:

  3.7 mm

• Termination Type:

  PRESS FIT

• Total Number of Contacts:

  66
