75714-5003 - Molex

Description: Small Form-factor Pluggable (SFP) Stacked 2-by-2 Multi-Port Connector with 2 Outer Lightpipes, with Press-fit PC Tails, 80 Circuits, Lead-Free

Download 75714-5003 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
75714-5003 - Molex - PCB symbol
click to zoom
PCB Footprints

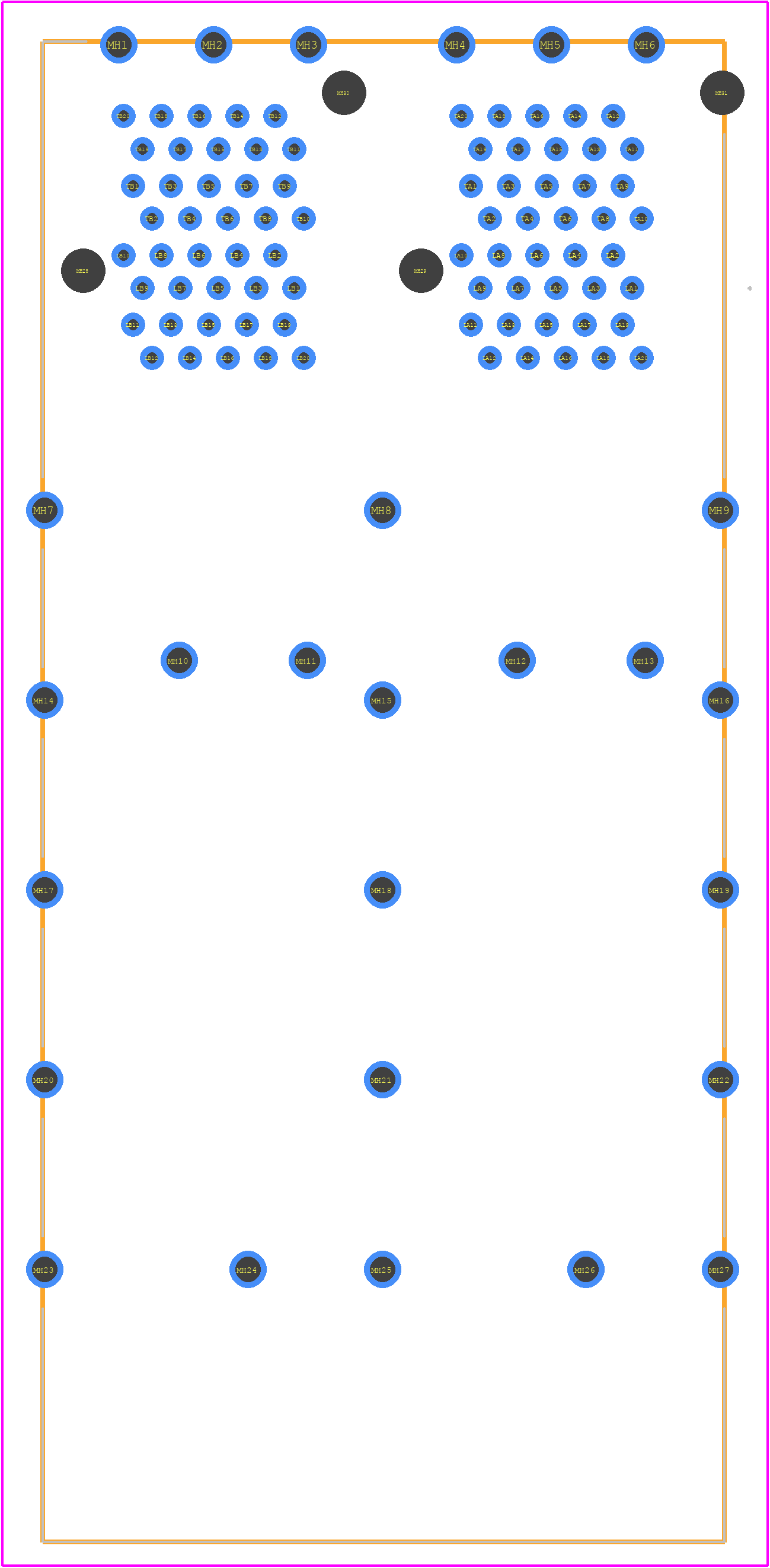

75714-5003 - Molex PCB footprint - Other - Other - 75714-5003-5
click to zoom
3D Models
75714-5003 - Molex - 3D model - Other - 75714-5003-5
click to zoom

75714-5003 Details

  • Manufacturer Part Number:

    75714-5003

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

75714-5003 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 75714-5003 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial control systems, automotive, and aerospace.
  • Yes, the 75714-5003 connector is designed to operate in a wide range of temperatures (-40°C to 105°C) and humidity levels, making it suitable for harsh environments.
  • The 75714-5003 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections over an extended period.
  • Yes, the 75714-5003 connector is designed for automated assembly processes, making it suitable for high-volume production environments.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

75714-5003 Overview

Use the download button to access the 75714-5003 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 75714, or try a keyword search, such as Telecom and Datacom Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
