75757-1441 - Molex

Description: MX150 Dual Row Header, Vertical, 8 Circuits, 1.5µm Tin (Sn) Plating, 11.20mm Mating Pin Length, 3.05mm PC Tail Length

Download 75757-1441 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
75757-1441 - Molex - PCB symbol
click to zoom
PCB Footprints

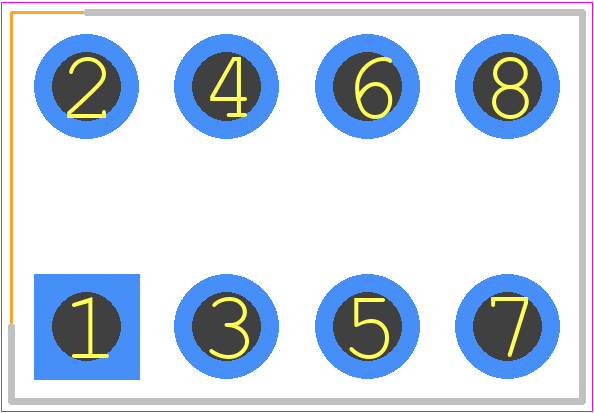

75757-1441 - Molex PCB footprint - Header, Vertical - Header, Vertical - 75757-1441
click to zoom
3D Models
75757-1441 - Molex - 3D model - Header, Vertical - 75757-1441
click to zoom

75757-1441 Details

  • Manufacturer Part Number:

    75757-1441

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    India, Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER):17A

  • Body Breadth:

    0.378 inch

  • Body Depth:

    0.177 inch

  • Body Length:

    0.276 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

75757-1441 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs) to ensure secure connections.
  • Yes, the 75757-1441 connector is designed to withstand high-vibration environments, but it's recommended to follow Molex's guidelines for vibration testing and to consult with a Molex representative for specific application requirements.
  • The 75757-1441 connector has a IP67 rating, making it suitable for outdoor use and harsh environmental conditions, but it's essential to follow proper sealing and installation procedures to maintain the IP rating.
  • The 75757-1441 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F), but it's recommended to consult the datasheet and Molex's application notes for specific temperature-related considerations.
  • While the 75757-1441 connector is designed for AWG 20-24 wires, it's possible to use other wire sizes, but it's crucial to consult Molex's wire size charts and to ensure that the wire insulation and stripping lengths meet the connector's requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

75757-1441 Overview

Use the download button to access the 75757-1441 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 75757, or try a keyword search, such as Combination Line Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
