75784-0107 - Molex

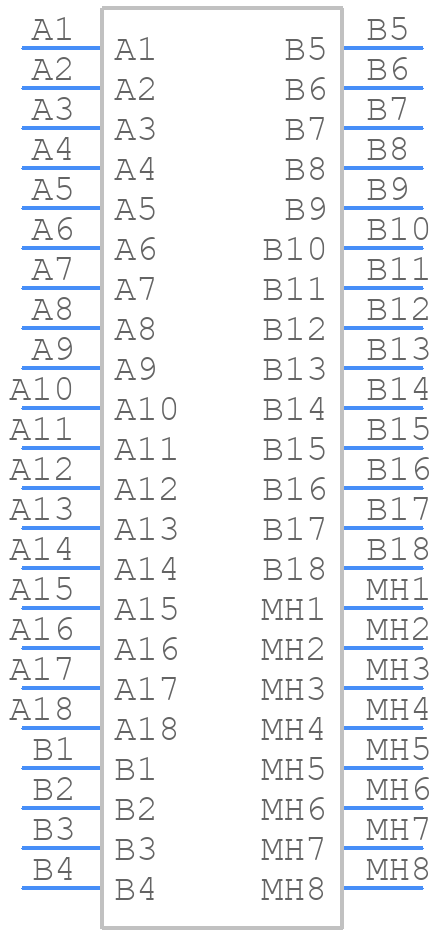

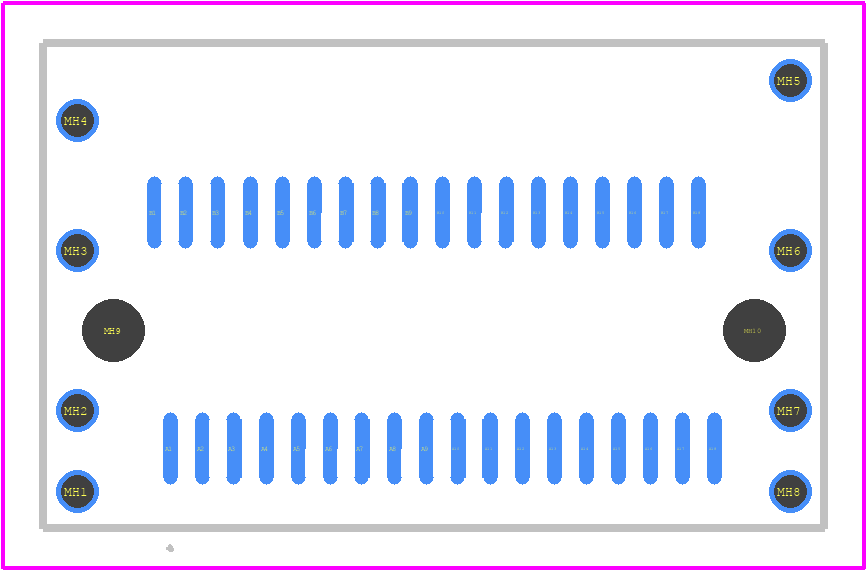

75784-0107 Details

• Manufacturer Part Number:

  75784-0107

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Molex

• YTEOL:

  0

• Additional Feature:

  ROHS AND ELV COMPLIANT

• Board Mounting Option:

  PEG

• Body Breadth:

  0.343 inch

• Body Depth:

  0.794 inch

• Body Length:

  0.701 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  SAS CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  MALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  30 mΩ

• Contact Style:

  COMPRESSION

• Dielectric Withstanding Voltage:

  300VAC V

• Durability:

  25 Cycles

• Insertion Force-Max:

  1.251 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYETHYLENE

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.031 inch

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  5.8674 mm

• Plating Thickness:

  15u inch

• Polarization Key:

  LEFT POLARIZED

• Rated Current (Signal):

  0.5 A

• Reference Standard:

  UL

• Terminal Pitch:

  0.7874 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  36

• Withdrawl Force-Min:

  .2502 N
