75900-1101 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
• Can I use this connector in high-vibration applications?
  Yes, the 75900-1101 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to follow Molex's guidelines for vibration testing and to ensure proper mounting and securing of the connector.
• Is this connector suitable for outdoor or harsh environment applications?
  The 75900-1101 connector has a rating of IP20, which means it provides some protection against solid objects and fingers, but it's not designed for outdoor or harsh environment applications. If you need a connector for outdoor use, consider Molex's connectors with higher IP ratings, such as IP67 or IP69K.
• Can I use this connector with wire sizes other than 24 AWG?
  While the 75900-1101 connector is designed for 24 AWG wire, it can accommodate wire sizes between 20 AWG and 26 AWG. However, using wire sizes outside this range may affect the connector's performance and reliability. Consult Molex's documentation or contact their support team for guidance on using non-standard wire sizes.

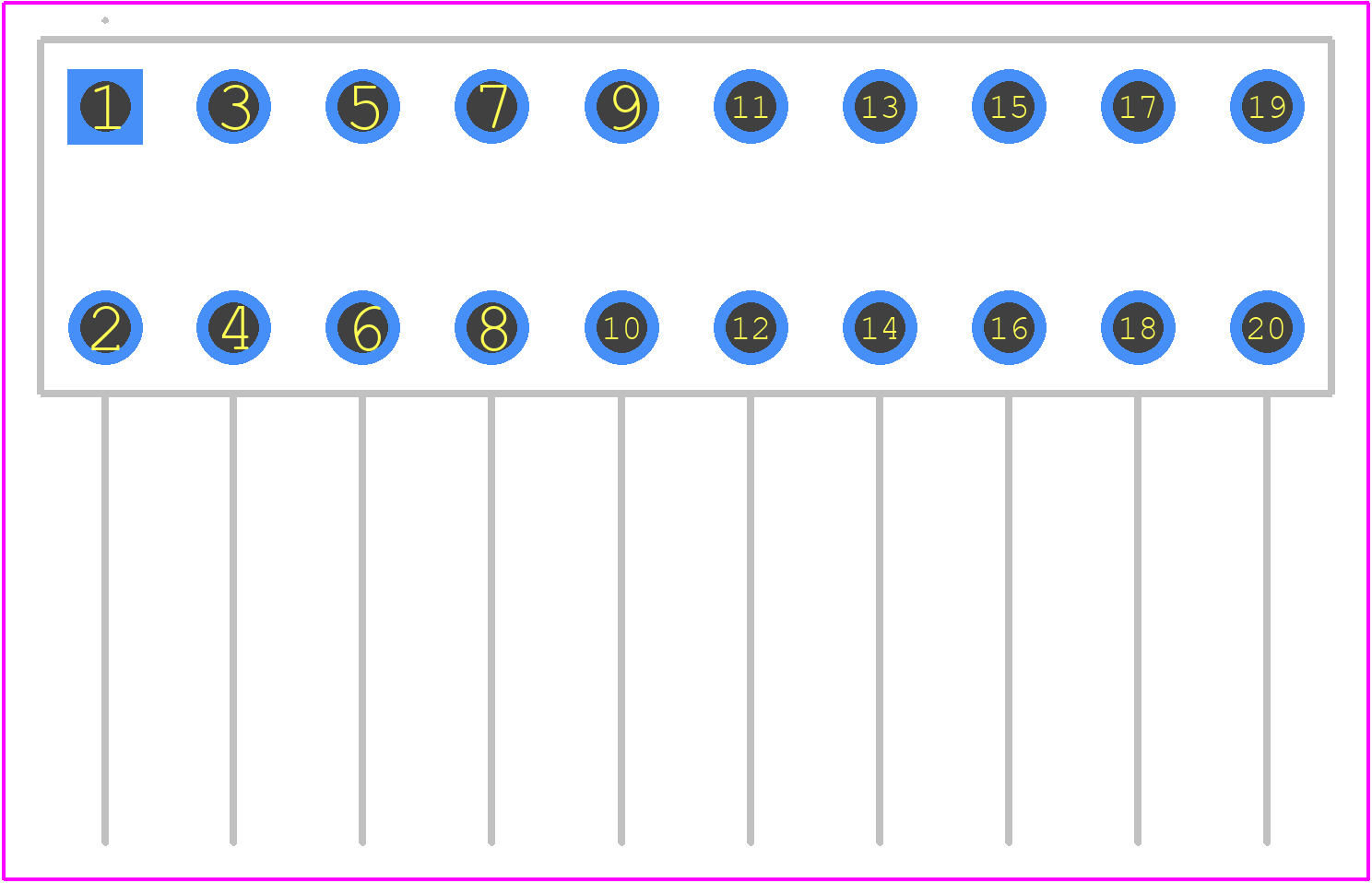

• Are there any specific PCB layout considerations for this connector?
  Yes, Molex provides guidelines for PCB layout and footprint design for the 75900-1101 connector. It's essential to follow these guidelines to ensure proper mating and unmating of the connector, as well as to prevent damage to the PCB or connector. Consult Molex's documentation or contact their support team for more information.
