76001-0010 - Molex

Description: Molex EXTREME Z-POWER Series, Series Number 76001, 3.18mm Pitch 2 Way Straight PCB Header, Press-In Termination, 50A

Download 76001-0010 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
76001-0010 - Molex - PCB symbol
click to zoom
PCB Footprints

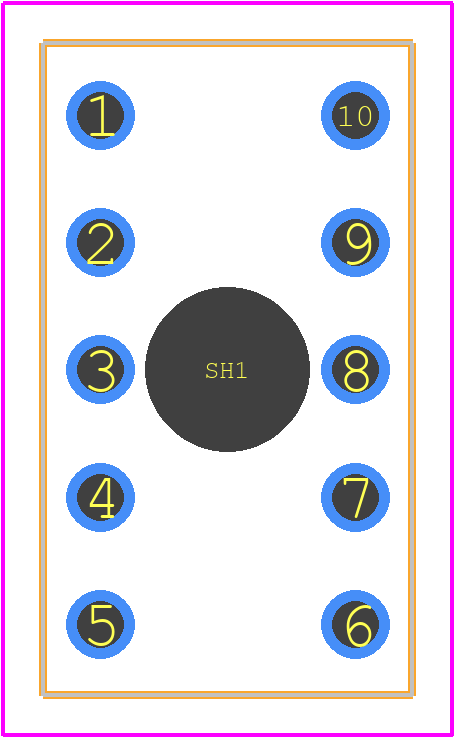

76001-0010 - Molex PCB footprint - Other - Other - 76001-0010-1
click to zoom
3D Models
76001-0010 - Molex - 3D model - Other - 76001-0010-1
click to zoom

76001-0010 Details

  • Manufacturer Part Number:

    76001-0010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Mexico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    3

  • Terminal and Terminal Block Type:

    PCB TERMINAL

76001-0010 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 76001-0010 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The operating temperature range for the 76001-0010 is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 76001-0010 is designed for outdoor use and can withstand exposure to moisture and humidity.
  • No, the 76001-0010 is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may not provide a secure connection.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

76001-0010 Overview

Use the download button to access the 76001-0010 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 76001, or try a keyword search, such as Terminals and Terminal Blocks

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
