76020-3004 - Molex

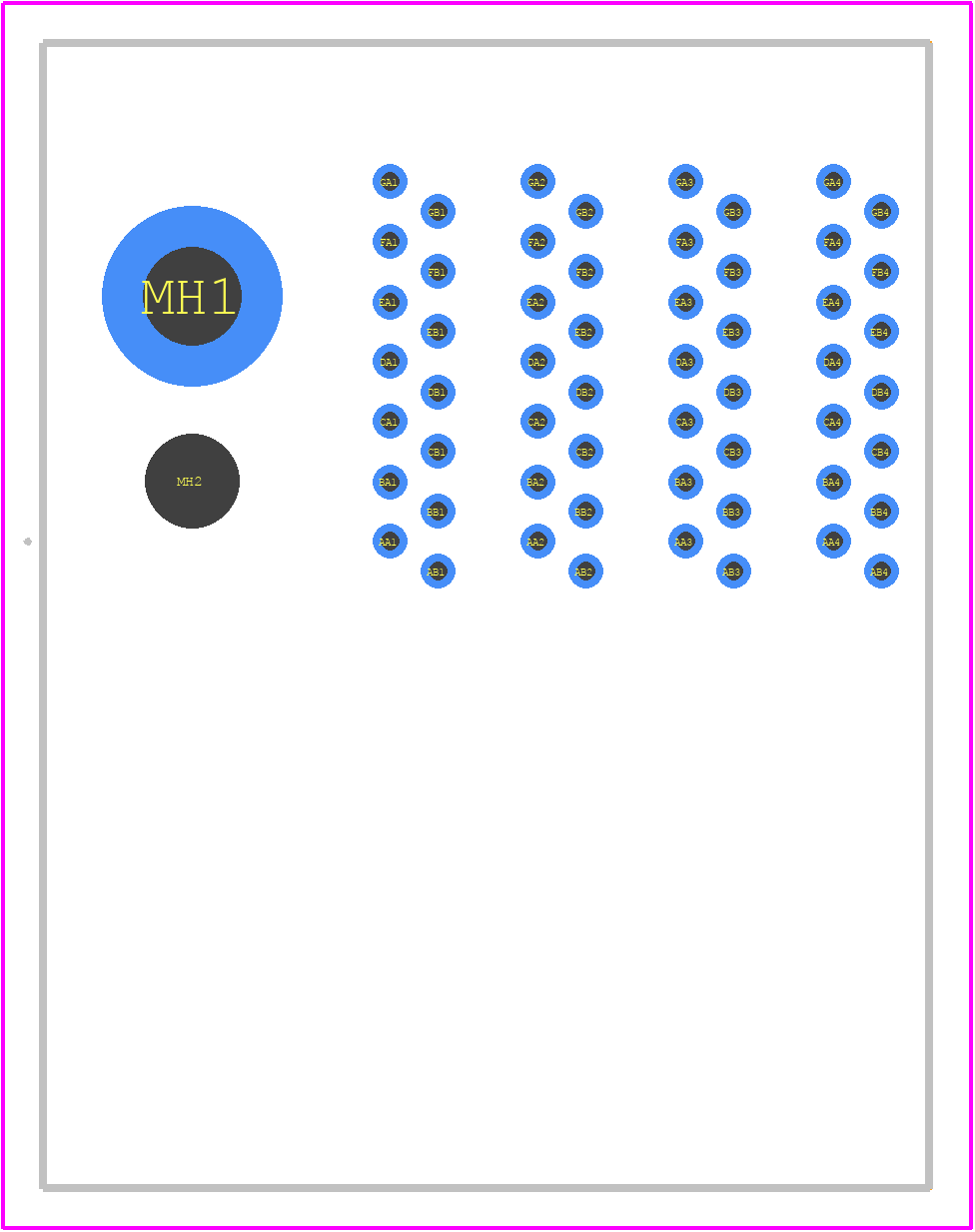

76020-3004 Details

• Manufacturer Part Number:

  76020-3004

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  Molex

• YTEOL:

  7

• Board Mounting Option:

  PEG

• Body Breadth:

  0.626 inch

• Body Depth:

  1.126 inch

• Body Length:

  0.874 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  SQ PIN-SKT

• Filter Feature:

  NO

• Insulator Material:

  GLASS FILLED LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.146 inch

• Mating Contact Row Spacing:

  0.073 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  7

• Number of Rows Loaded:

  7

• Operating Temperature-Max:

  80 °C

• Operating Temperature-Min:

  -55 °C

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  0.75 mm

• Polarization Key:

  RIGHT

• Rated Current (Signal):

  1 A

• Reference Standard:

  UL

• Terminal Length:

  0.079 inch

• Terminal Pitch:

  0.146 mm

• Termination Type:

  PRESS FIT

• Total Number of Contacts:

  56
