Technical Content
Part Image

76165-1125 - Molex

Description: High Speed / Modular Connectors Impact BP 3x10 Dual BP 3x10 Dual Wall Sn

Download 76165-1125 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
76165-1125 - Molex - PCB symbol
click to zoom
PCB Footprints

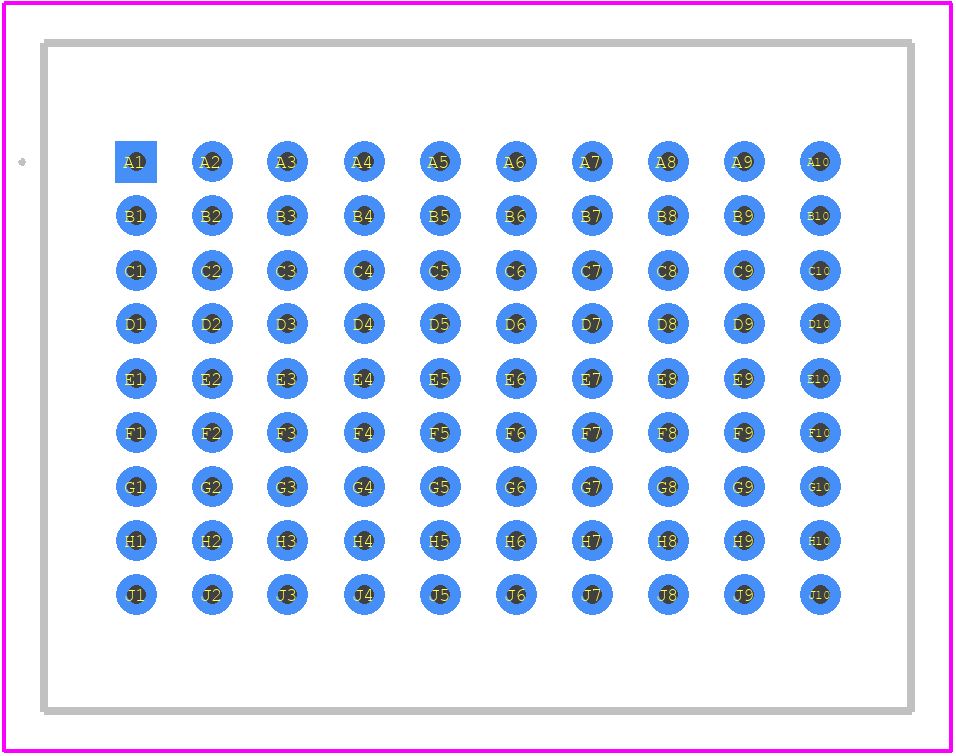

76165-1125 - Molex PCB footprint - Other - Other - 76165-1125-3
click to zoom
3D Models
76165-1125 - Molex - 3D model - Other - 76165-1125-3
click to zoom

76165-1125 Details

  • Manufacturer Part Number:

    76165-1125

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Singapore, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.6

  • Additional Feature:

    IMPACT

  • Body Breadth:

    0.657 inch

  • Body Depth:

    0.47 inch

  • Body Length:

    0.854 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BLADE PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.075 inch

  • Mating Contact Row Spacing:

    0.053 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    9

  • Number of Rows Loaded:

    9

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    1.35 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    0.75 A

  • Terminal Pitch:

    1.9 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    90

76165-1125 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 76165-1125 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The 76165-1125 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor or harsh environments, it's essential to take additional measures to ensure the connector is properly sealed and protected from the elements.
  • While the datasheet recommends using AWG 20-24 wire, it's possible to use other wire sizes with the 76165-1125 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or electrical issues.
  • Yes, when designing the PCB layout, ensure that the connector is placed in a location that allows for easy access and mating. Also, consider the connector's footprint and ensure that there is sufficient clearance around the connector to prevent interference with other components.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

76165-1125 Overview

Use the download button to access the 76165-1125 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 76165, or try a keyword search, such as Headers and Edge Type Connectors
