76165-1127 - Molex

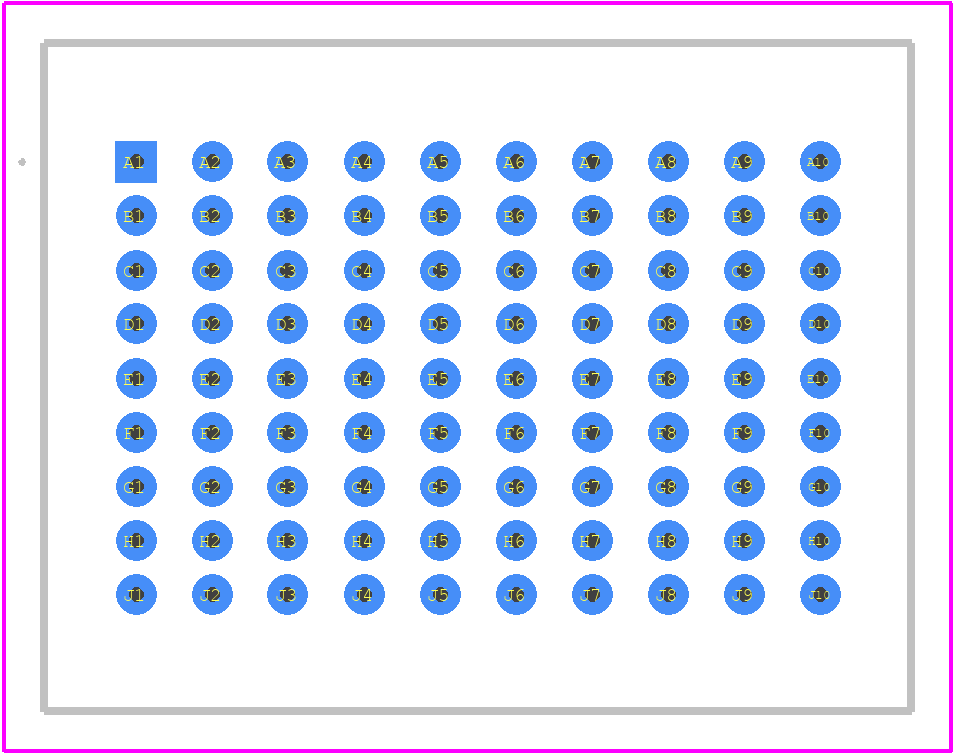

76165-1127 Details

• Manufacturer Part Number:

  76165-1127

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LOW HALOGEN AND ROHS COMPLIANT

• Country Of Origin:

  Singapore, USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  21 Weeks

• Manufacturer:

  Molex

• YTEOL:

  7.75

• Additional Feature:

  IMPACT

• Body Breadth:

  0.657 inch

• Body Depth:

  0.47 inch

• Body Length:

  0.854 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  MALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  10 mΩ

• Contact Style:

  BLADE PIN-SKT

• DIN Conformance:

  NO

• Durability:

  200 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  .3336 N

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.075 inch

• Mating Contact Row Spacing:

  0.053 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  9

• Number of Rows Loaded:

  9

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  1.35 mm

• Plating Thickness:

  30u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  0.75 A

• Reference Standard:

  UL

• Terminal Length:

  0.055 inch

• Terminal Pitch:

  1.9 mm

• Termination Type:

  PRESS FIT

• Total Number of Contacts:

  90

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  .139 N
