76165-5807 - Molex

Description: High Speed / Modular Connectors Impact BP 3x8 GR Sn Impact BP 3x8 GR Sn

Download 76165-5807 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
76165-5807 - Molex - PCB symbol
click to zoom
PCB Footprints

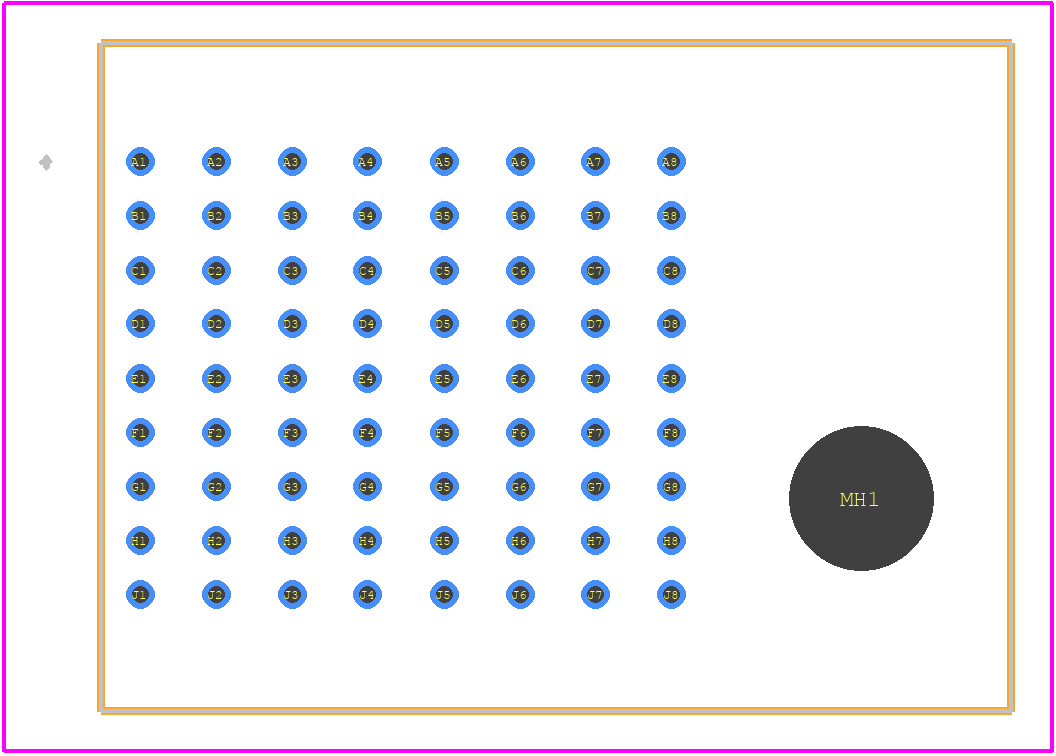

76165-5807 - Molex PCB footprint - Other - Other - 76165-5807-4
click to zoom
3D Models
76165-5807 - Molex - 3D model - Other - 76165-5807-4
click to zoom

76165-5807 Details

  • Manufacturer Part Number:

    76165-5807

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Singapore, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    9

  • Body Breadth:

    0.657 inch

  • Body Depth:

    0.47 inch

  • Body Length:

    0.854 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BLADE PIN-SKT

  • Filter Feature:

    NO

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.075 inch

  • Mating Contact Row Spacing:

    0.053 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    GUIDE PIN

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    9

  • Number of Rows Loaded:

    9

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    1.35 mm

  • Plating Thickness:

    30u inch

  • Polarization Key:

    RIGHT

  • Rated Current (Signal):

    0.75 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.055 inch

  • Terminal Pitch:

    1.905 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    72

76165-5807 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 76165-5807 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 76165-5807 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's not designed for prolonged exposure to direct sunlight, high temperatures, or extreme humidity. For outdoor or harsh environment applications, consider using a connector with a higher IP rating or additional protection measures.
  • While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes with caution. However, using smaller or larger wires may affect the connector's performance, reliability, and durability. Consult with Molex or a qualified engineer to determine the feasibility of using alternative wire sizes.
  • To ensure proper mating and unmating, follow the recommended mating sequence, and apply gentle, even pressure while inserting or removing the connector. Avoid applying excessive force, twisting, or bending, which can damage the connector or its components.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

76165-5807 Overview

Use the download button to access the 76165-5807 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 76165, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
