76165-9105 - Molex

Description: High Speed / Modular Connectors Impact BP 3x10 GR/W pact BP 3x10 GR/W Sn

Download 76165-9105 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
76165-9105 - Molex - PCB symbol
click to zoom
PCB Footprints

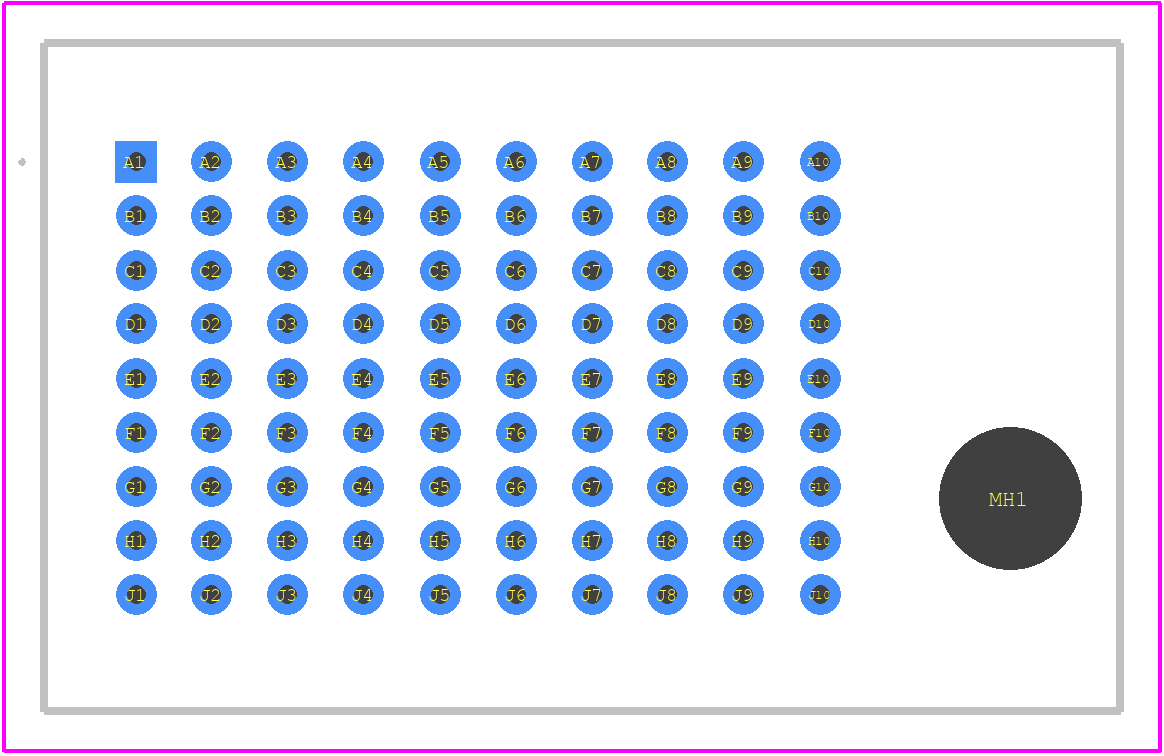

76165-9105 - Molex PCB footprint - Other - Other - 76165-9105-1
click to zoom
3D Models
76165-9105 - Molex - 3D model - Other - 76165-9105-1
click to zoom

76165-9105 Details

  • Manufacturer Part Number:

    76165-9105

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Singapore, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.6

  • Additional Feature:

    IMPACT

  • Body Breadth:

    0.657 inch

  • Body Depth:

    0.47 inch

  • Body Length:

    1.059 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BLADE PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.075 inch

  • Mating Contact Row Spacing:

    0.053 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    GUIDE PIN

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    9

  • Number of Rows Loaded:

    9

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    1.35 mm

  • Plating Thickness:

    30u inch

  • Polarization Key:

    RIGHT

  • Rated Current (Signal):

    0.75 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.055 inch

  • Terminal Pitch:

    1.9 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    90

76165-9105 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 76165-9105 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 76165-9105 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating. Additionally, the connector's materials and construction can withstand moderate environmental stresses, but it's not designed for extreme temperatures, high humidity, or exposure to corrosive substances.
  • While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes with caution. However, using smaller or larger wires may affect the connector's performance, reliability, and durability. It's essential to consult with Molex or a qualified engineer to determine the feasibility of using alternative wire sizes.
  • Yes, to ensure reliable operation and prevent damage, it's essential to follow Molex's recommended PCB layout guidelines, including keeping the PCB material and thickness within specified limits, maintaining proper clearance around the connector, and avoiding thermal vias or high-current traces near the connector.
