Part Image

764951807 - Molex

Description: Impact 85 Ohm Plus 4 Pair RAM Signal Module, Unguided, Open Endwalls, 8 Columns, 96 Circuits, Pin Length 4.90mm, Plated Through Hole Dimension 0.39mm, Lead Free

Download 764951807 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
764951807 - Molex - PCB symbol
click to zoom
PCB Footprints

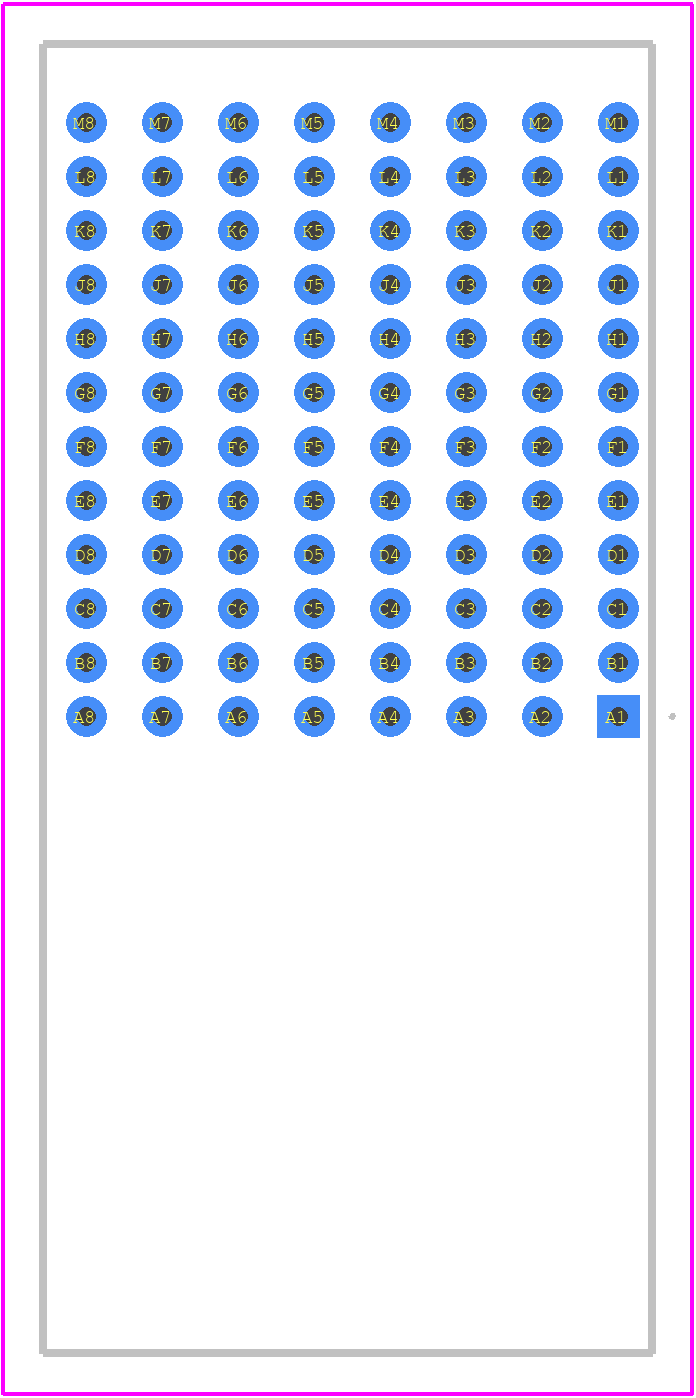

764951807 - Molex PCB footprint - Other - Other - 764951807-1
click to zoom
3D Models
764951807 - Molex - 3D model - Other - 764951807-1
click to zoom

764951807 Details

  • Manufacturer Part Number:

    764951807

  • Manufacturer:

    Molex

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

764951807 Overview

Use the download button to access the 764951807 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 76495, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
