76546-0003 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
• Can I use this connector in high-vibration applications?
  Yes, the 76546-0003 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
• Is this connector suitable for outdoor or harsh environmental use?
  The 76546-0003 connector has a rating of IP67, which means it's protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
• Can I use this connector with wire sizes other than the recommended AWG 20-24?
  While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 76546-0003 connector. However, it's crucial to ensure the wire size and insulation meet the connector's specifications and that the connection is reliable and secure.

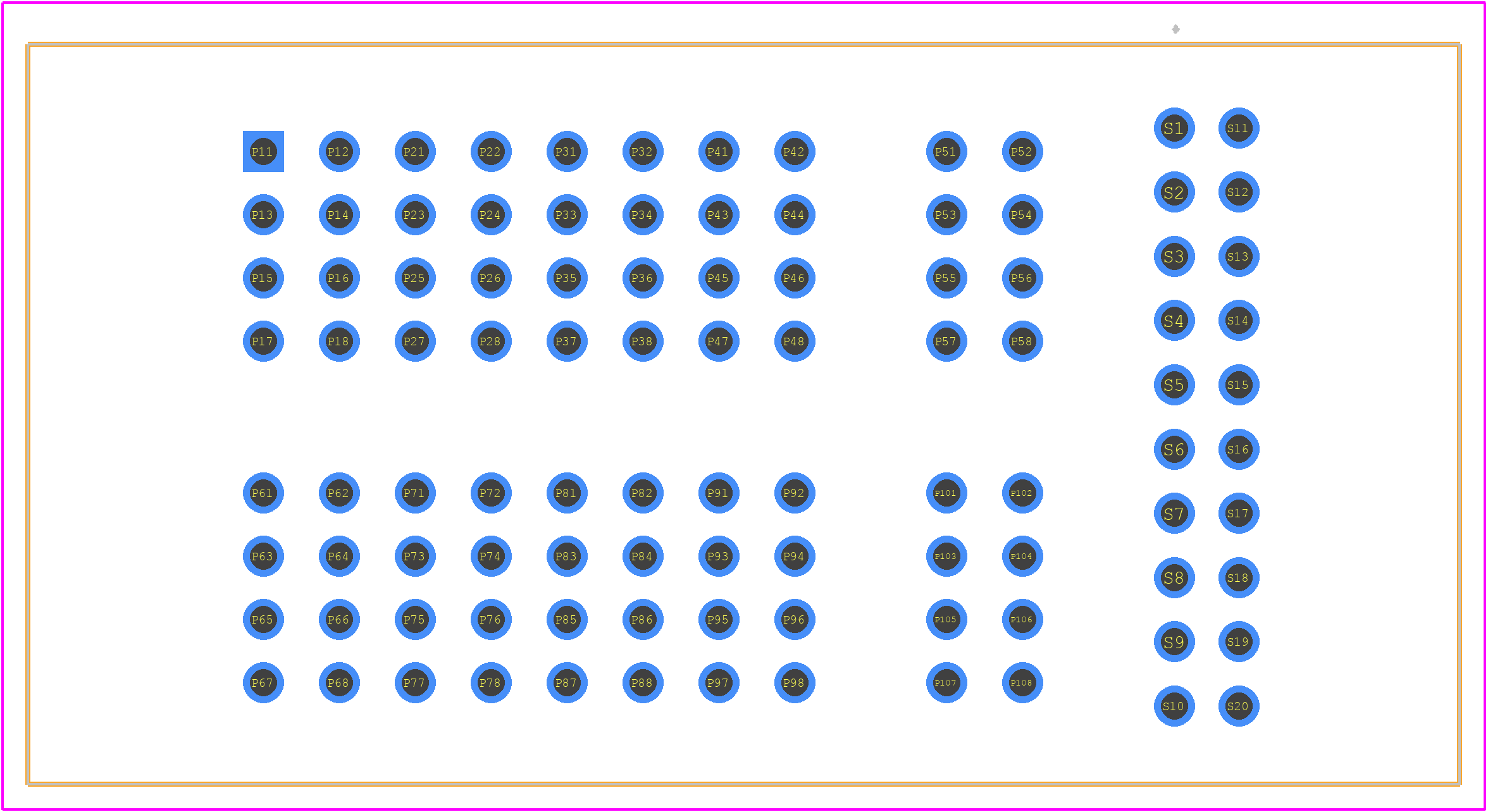

• Are there any specific PCB layout considerations for this connector?
  Yes, it's essential to follow proper PCB layout guidelines for the 76546-0003 connector. Ensure the PCB footprint matches the connector's dimensions, and provide adequate clearance around the connector to prevent interference with other components.
