768290106 - Molex

Description: Mega-Fit Slim Vertical Header, Through Hole, 5.70mm Pitch, Dual Row, 6 Circuits, 1.52µm Tin (Sn) Plating, Glow-Wire Capable, Black

Download 768290106 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
768290106 - Molex - PCB symbol
click to zoom
PCB Footprints

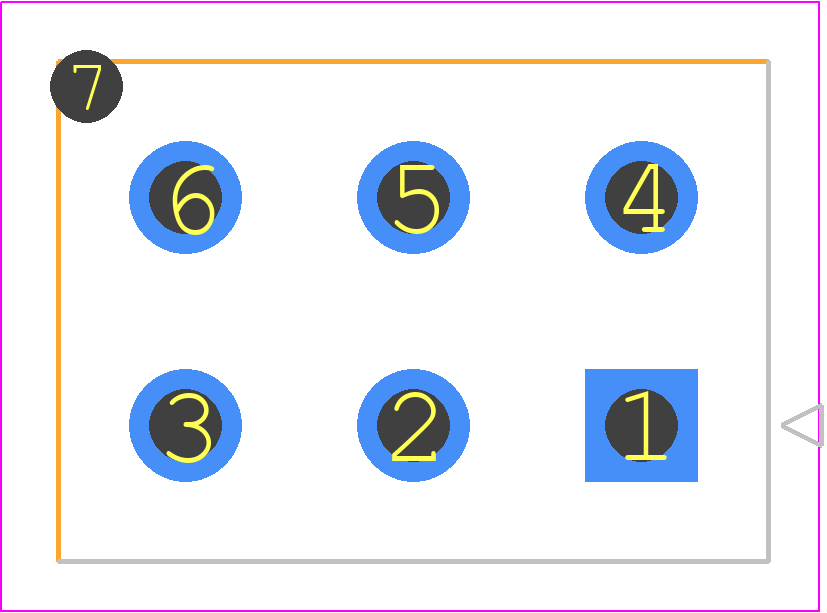

768290106 - Molex PCB footprint - Other - Other - 76829YY06
click to zoom
3D Models
768290106 - Molex - 3D model - Other - 76829YY06
click to zoom

768290106 Details

  • Manufacturer Part Number:

    768290106

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    6.87

  • Body Breadth:

    0.552 inch

  • Body Depth:

    0.583 inch

  • Body Length:

    0.699 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

768290106 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs).
  • Yes, the Molex 768290106 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial control systems, automotive, and aerospace.
  • Yes, the connector is rated for operating temperatures ranging from -40°C to 105°C (-40°F to 221°F) and is resistant to moisture and humidity, making it suitable for outdoor and humid environments.
  • The Molex 768290106 connector is designed to accommodate wire sizes ranging from 24 AWG to 16 AWG (0.25 mm² to 1.5 mm²).
  • Yes, the connector is designed for automated assembly processes, including pick-and-place and wire-termination machines, making it suitable for high-volume production.
